Lid Screw Type	Flat round screw
Material	Stainless steel 304 (V2A)
Screw Size	M10 x 35
Clamping Range (mm)	6 - 10
Conductor Diameter (mm)	6
Lightning current load-bearing capacity (10/350µs)	100 / 50
Suitable For	Earthing
Brand	DEHN
Type	Equipotential Bonding
Connector Type	Clamp connector
Surface Protection	Untreated
Dimensions (mm)	3W x 4H x 3D
Thickness (mm)	2.5
Weight (kg)	0.06
Standards and Approvals	EN 62561-1

Lightning & Surge Protection

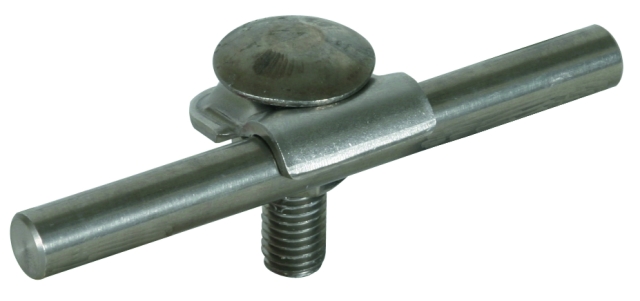

DEHN "CLAMPING FRAME RD 6-10mm STST WITH TRUSS HEAD SCREW AND M10 390159
