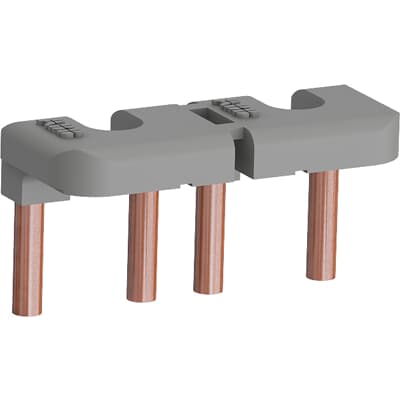

ABB CONNECTING STRIP LY16-4

Product Code: LY16-4

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Suitable For AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AFC09, AFC12, AFC16
Brand ABB
Product Type Accessory
Type Connecting Bridge
Product Quantity 10
Terminal Type Screw
Dimensions (mm) 32.2W x 17.4H x 14D
Weight (kg) 0.006
Degree of Protection IP20
Standards and Approvals EN 60947-1, EN 60947-4-1, UL 60947-4-1

Description

LY16-4 is an insulated connecting strip used on 3-pole AF(C)(S)09..16 contactors: To obtain a star point (3 parallel-connected poles). To connect 2 poles (LY16-4 includes secable strips) or 3 poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles. The relevant cable cross-sectional area may limit the maximum permissible current: consult technical data information on catalogue. To connect 2 or 3 poles in series and thus increase the DC voltage controlled by the poles: LY16-4 includes secable strips.
