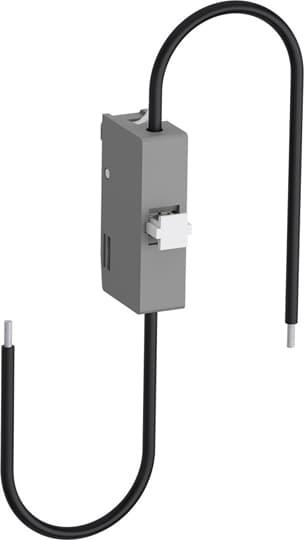

ABB CB5-01 IMPULSE CONTACT BLOCK CB501

Product Code: CB501

CB5 Impulse contact blocks are designed for use in enclosures, in association with an adjustable mechanical pushbutton. Two types are available: €¢ CB5-10: N.O. contact with a black actuator ("ON" function) €¢ CB5-01: N.C. contact with a light grey actuator ("OFF" function). These blocks are equipped with 2 connecting leads 0.5 mm² with end, approximately 18 cm long. Mounting: Clipped onto the front face of the contactors.

Technical Specifications

Brand ABB
Auxiliary Contacts 1NC
Connection Type Screw Connection
Degree of Protection IP40 (Aux. Terminals)
Model Clip-on
Mounting Type Front Fastening
No. of Normally-closed Contacts 1
Rated Operational Current AC-15 230V (A) 3
Suitable For AF09-AF96, AFC09-AFC38, A9-A110, AL9-AL40, AE45-AE75, TAL9-TAL40, TAE45-TAE75, GA75,GAE75, UA16-UA110
Terminal Type Screw
