Specifications

Mounting Type	Front Fastening
Operational Temperature Range (°C)	-25 to +55
Model	Clip-on
Suitable For	B6, BC6, B7-30-10, BC7-30-10, VB6, VB7, VBC6, VBC7
Brand	ABB
Product Type	Accessory
Auxiliary Contacts	2NO
Connection Type	Screw Connection
No. of Normally-open Contacts	2
No. of Poles	2
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	6
Rated Insulation Voltage (V)	690
Rated Operational Current AC-15 230V (A)	4
Rated Operational Voltage AC (V)	690
Dimensions (mm)	47.5W x 29H x 26.5D
Degree of Protection	IP20

Description

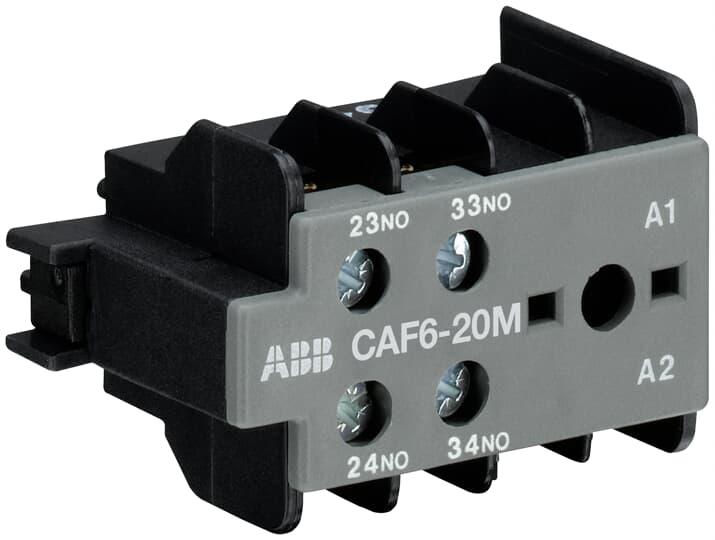

The CAF6-20M is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals.
