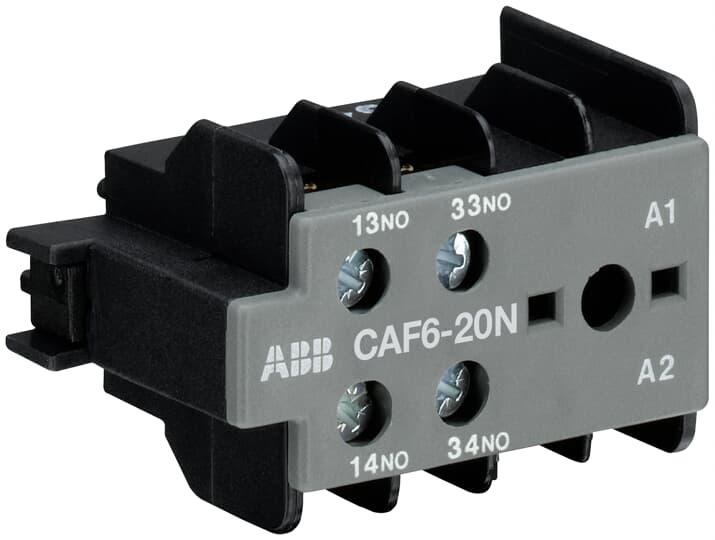

ABB CAF6-20N AUXILIARY CONTACT CAF620N

Product Code: CAF620N

The CAF6-20N is an auxiliary contact for front mounting with 2 auxiliary contact and screw terminals

Technical Specifications

Brand ABB
Auxiliary Contacts 2NO
Connection Type Screw Connection
Degree of Protection IP20
Dimensions (mm) 47.5W x 29H x 26.5D
Model Clip-on
Mounting Type Front Fastening
No. of Normally-open Contacts 2
No. of Poles 2
Operational Temperature Range (°C) -25 to +55
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current AC-15 230V (A) 4
Rated Operational Voltage AC (V) 690
Suitable For B6, BC6, B7-30-01, BC7-30-01, VB6, VBC6, VB7, VBC7
