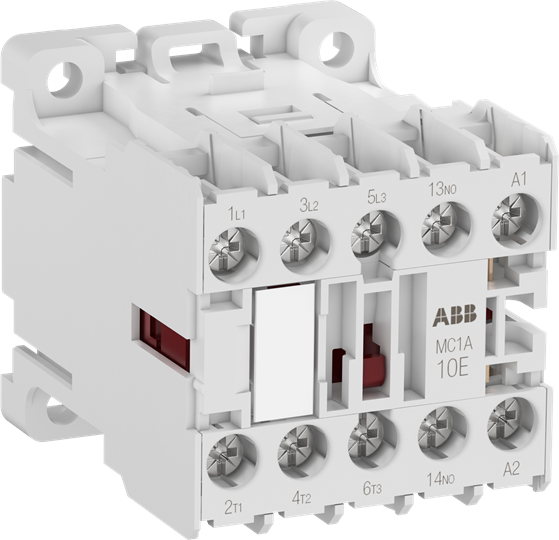

ABB MC1A310ATW MINI CONTACTOR 50 HZ 415 ... 440 V AC - 3 NO - 0 NC - SCREW TERMINALS MC1A310ATW

Product Code: MC1A310ATW

  • Compact design, ideal for installations with limited space Ideal for residential, commercial, and industrial use Auxiliary functionality Options for wall or rail mounting to accommodate different installations needs
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail / Wall
Operational Temperature Range (°C) -40 to +55
Brand ABB
Product Type Mini Contactor
Series M
Actuating Voltage Type AC
Auxiliary Contacts 1NO
Main Circuit Electrical Connection Screw Connection
Mode of Operation AC
No. of Normally-open Auxiliary Contacts 1
No. of Normally-open Contacts 3
No. of Poles 3
Operating Voltage AC (V) 440
Power Loss (W) 0.7/pole AC-1
Rated Control Circuit Voltage AC (V) 415 - 440
Rated Control Supply Voltage AC (V) 415
Rated Control Supply Voltage DC (V) 415
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Current AC-1 400V (A) 20
Rated Operational Power AC-3 400V (kW) 4
Rated Operational Voltage AC (V) 440
Rated Supply Voltage AC (V) 415
Terminal Type Screw
Dimensions (mm) 45W x 48H x 56D
Degree of Protection IP20

Description

The MC1A310ATW mini contactor is a dimension optimized 3 pole contactor with 1 NO auxiliary contact and screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for the control of single or three-phase loads up to 4 kW (AC-3) and 20 A / 690 V (AC-1) or switching of control signals. The product is suitable for wall or rail mounting.
