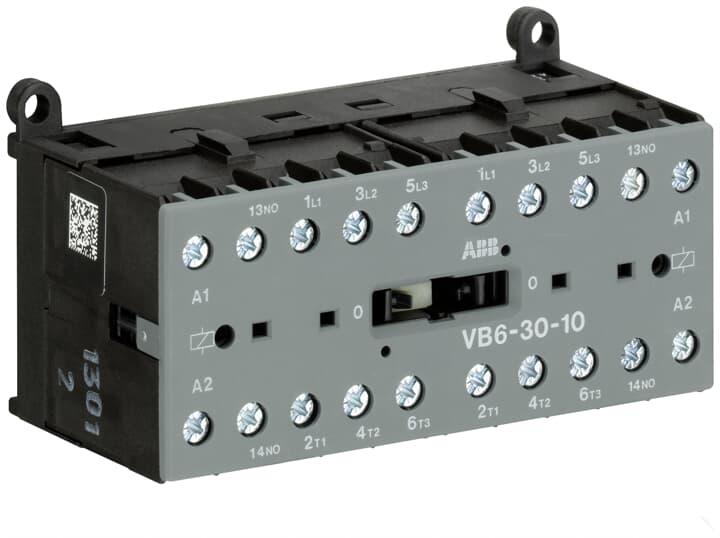

ABB VB6-30-10-80 MINI REVERSING CONTACTOR 220 ... 240 V AC - 3 NO - 0 NC - SCREW TERMINALS VB6301080

Product Code: VB6301080

  • Very compact, falt design Easy and quick mounting in any position Compact reversing contactor as one module, including blocking function Low power consumption Positive linked and guided contacts Hum-free operating DC coil
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type Rail Mount
Operational Temperature Range (°C) -20 to +55
Brand ABB
Product Type Mini Contactor
Actuating Voltage Type AC
Auxiliary Contacts 1NO
Function Reversing Contactor
Main Circuit Electrical Connection Screw Connection
No. of Normally-open Auxiliary Contacts 1
No. of Normally-open Contacts 3
No. of Poles 3
Operating Voltage AC (V) 690
Operating Voltage DC (V) 2.5
Operating Voltage Type AC
Power Loss (W) 2.0/pole
Rated Control Circuit Voltage AC (V) 220 - 240
Rated Control Supply Voltage AC (V) 220
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current AC-1 240V (A) 20
Rated Operational Current AC-1 690V (A) 6
Rated Operational Power AC-3 400V (kW) 4
Rated Operational Power AC-3 415V (kW) 4
Rated Operational Voltage AC (V) 690
Rated Supply Voltage AC (V) 220
Terminal Type Screw
Dimensions (mm) 96.2W x 57.5H x 46.7D
Degree of Protection IP20
Pollution Degree 3
NEMA Degree of Protection 1

Description

The VB6-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
