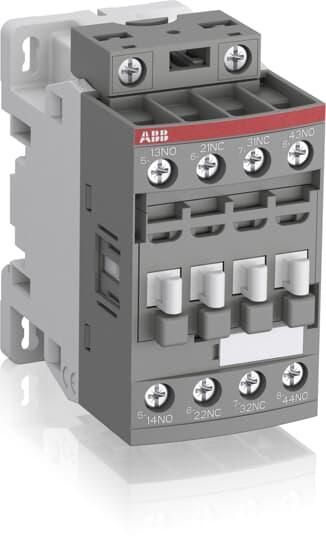

ABB NF40E-13 100-250V50/60HZ-DC CONTACTOR RELAY NF40E13

Product Code: NF40E13

  • Universal voltage compatibility Single coil accomodates various control voltages without changes Withstands short voltage dips and sags for reliable operation Built-in surge protection Mechanically-linked auxiliary contacts compliant with IEC standards
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail / Screw
Storage Temperature (°C) -60 to +80
Operational Temperature Range (°C) -40 to +70
Brand ABB
Product Type NF Contactor Relay
Actuating Voltage Type AC/DC
Auxiliary Contacts 4NO
Connection Type Screw Connection for Auxiliary Circuit
No. of Normally-open Auxiliary Contacts 4
No. of Poles 4
Operating Voltage AC (V) 690
Rated Control Circuit Voltage AC (V) 100 - 250
Rated Control Circuit Voltage DC (V) 100 - 250
Rated Control Supply Voltage AC (V) 100
Rated Control Supply Voltage DC (V) 100
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current (A) 3
Rated Operational Current AC-15 400V (A) 3
Rated Operational Voltage AC (V) 690
Rated Supply Voltage AC (V) 100
Terminal Type Screw Terminals
Dimensions (mm) 45W x 86H x 77D
Degree of Protection IP20

Description

NF contactor relays are used for switching auxiliary and control circuits. NF contactor relays include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. NF contactor relays can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. NF contactor relays have built-in surge protection and do not require additional surge suppressors. - Poles: 4-pole contactor relays - Control Circuit: AC or DC operated - Accessories: a wide range of Accessories is available.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
