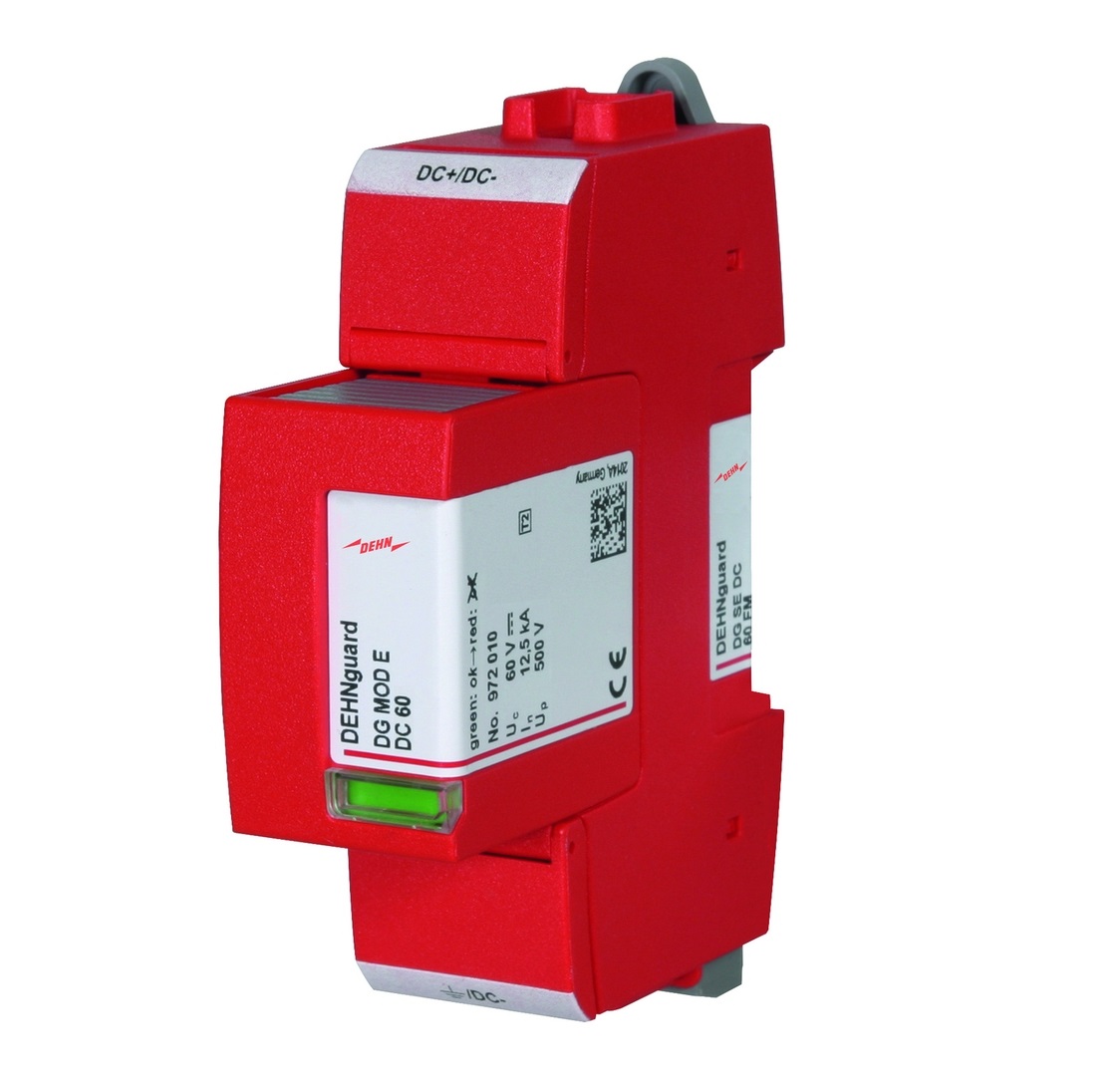

DEHN SURGE ARRESTER TYPE 2 DEHNGUARD SE DC 1-POLE UC 60V DC DGSEDC60FM

Product Code: DGSEDC60FM

Single-pole DEHNguard SE DC surge arrester (type 2 according to EN 61643-11) consisting of a base part and plug-in protection module. High reliability due to high-performance d.c. switching device DCD which is particularly suited for use in d.c. circuits. For protecting low-voltage consumer´s installations against surges.

Technical Specifications

Article No. 972115
Brand DEHN
Mounting Type DIN Rail
Circuit Type DB
Maximum Continuous Operating Voltage MCOV DC (V) 60
No. of Poles 1P
Nominal Discharge Current (8/20µs) - In (kA) 12.5
Nominal Voltage DC (V) 48
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 25
Short-Circuit Withstand Capability - Iscc? (kArms) 25
Signal C/O Contact Yes
SPD Type Type 2
Dimensions (mm) 0.09W x 0.11L x 0.03D
No. of Modules 1.5
Weight (kg) 0.16
Voltage Protection Level - Up (kV) ≤ 0.5
Degree of Protection IP20
