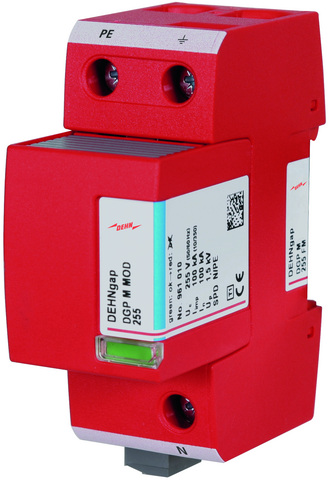

Single-pole coordinated DEHNgap modular N-PE lightning current arrester Total current arrester specifically designed for installation in 3+1 and 1+1 circuits of TT systems between neutral conductor N and protective conductor PE For protecting low-voltage consumer's installations against surges and even direct lightning strikes For installation in conformity with the lightning protection zone concept at the boundaries from 0A 1 (3+1 circuit)

Specifications

Lightning Impulse Current (10/350 µs) - Iimp (kA)	100
Reference No.	961105
Brand	DEHN
Product Type	Arrester
Type	N-PE Lightning Current
Maximum Continuous Voltage AC (V)	255
No. of Conductors	1
Nominal Voltage AC (V)	230
Dimensions (mm)	73W x 90H x 36D
Weight (kg)	0.34
Weight (g)	331
Standards and Approvals	EN 61643-11, IEC 60364-5-53
