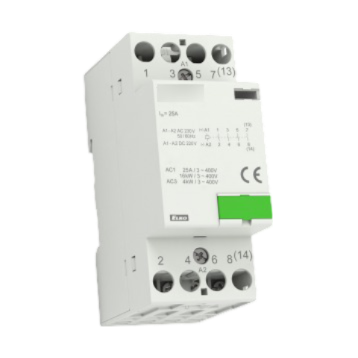

ELKO VS425-40/24V DIN CONTACTOR 4NO, 25A (AC-1), CONTROL 24V AC/DC

Product Code: VS425-40/24V

The Din Contactor is a compact and versatile device designed for switching resistive loads and three-phase induction motors. It has 4 normally open contacts and a current rating of 25A (AC1). The control voltage can be either 24V AC or DC. With a width of 2 modules (35mm), it can easily be mounted on a DIN Rail. The contactor offers IP20 protection, making it suitable for various applications including heating, lighting, hot water, and storage heating.

Technical Specifications

No. of Modules - Width 17.5 mm 2
Brand ELKO
Series VS
Mounting Type DIN Rail
Operational Temperature Range (°C) -5 to +55
Contacts 4NO
Dielectrical Strength (kV) 4
No. of Poles 4P
Rated Insulation Voltage (V) 440
Rated Operational Current AC-1 (A) 25
Rated Supply Voltage AC/DC (V) 24
Dimensions (mm) 35 x 85 x 60
Degree of Protection IP20
