  • ELKO VS440-40/24V DIN CONTACTOR 4NO, 40A (AC-1), CONTROL 24V AC/DC

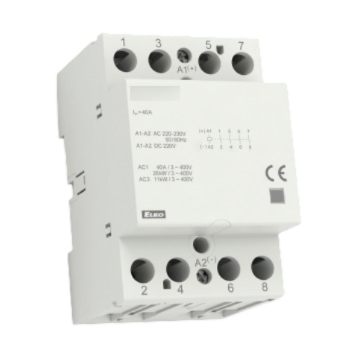

ELKO VS440-40/24V DIN CONTACTOR 4NO, 40A (AC-1), CONTROL 24V AC/DC

Product Code: VS440-40/24V

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

No. of Modules - Width 17.5 mm 3
Mounting Type DIN Rail
Operational Temperature Range (°C) -5 to +55
Brand ELKO
Product Type DIN Contactor
Series VS
Contacts 4NO
Dielectrical Strength (kV) 4
No. of Poles 4P
Rated Insulation Voltage (V) 440
Rated Operational Current AC-1 (A) 40
Rated Supply Voltage AC/DC (V) 24
Dimensions (mm) 53.3 x 84 x 60
Degree of Protection IP20

Description

The Din Contactor is a 4NO contact device with a current rating of 40A (AC1) and a control voltage of 24V AC/DC. It has a width of 3 modules, with each module measuring 17.5mm. The contactor provides IP20 protection and is designed for switching resistive loads and three-phase induction motors. It is well-suited for applications such as heating, lighting, hot water, and storage heating. The Din Contactor can be easily mounted on a DIN Rail.
