Brand	ABB
EAN	8015644840815
AC Voltage (V)	600
Current Rating (A)	1600
Design of Control Element	Push Button
Indication	Switched-off Indicator
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	640
Power Loss (W)	260
Rated Current (A)	1600
Rated Instantaneous Short-Circuit Current - Ii (A)	2400
Rated Insulation Voltage AC (V)	635
Rated Operational Voltage AC (V)	600
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	600
Size of Frame	E2.2
Trip Unit	Ekip Dip LI
Degree of Protection	IP30
Standards and Approvals	UL
Poles	3P
Trip Unit - Electronic	Ekip Dip LI
Frame	E2.2

Air Circuit Breakers

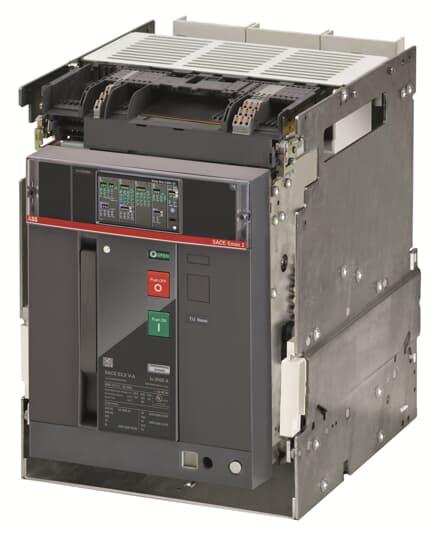

ABB E2.2S-A 1600 EKIP DIP LI 3P WMP 1SDA077658R1
