Suitable For	E4.2
Version	Withdrawable
Brand	ABB
EAN	8015644763961
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Current Rating (A)	4000
Current Type	AC
Design of Control Element	Push Button
Earth Fault Protection	Yes
Indication	Switched-off Indicator
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	1600
Power Loss (W)	900
Rated Current (A)	4000
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	6000
Rated Insulation Voltage AC (V)	1000
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Short-time Withstand Current - Icw (kA/3s)	50
Rated Uninterrupted Current - Iu (A)	4000
Rated Voltage (V)	690
Rated Voltage AC (V)	690
Dimensions (mm)	425W x 425H x 383D
Trip Unit	EKIP Touch LSIG
Dimensions of Suitable Box (mm)	425W x 425H x 383D
Degree of Protection	IP30
Poles	3P
Trip Unit - Electronic	EKIP Touch LSIG
Icw (kA/1s) - Short-time Withstand Current Rating	66
Icw (kA/3s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	4000
Component Type	Withdrawable

Air Circuit Breakers

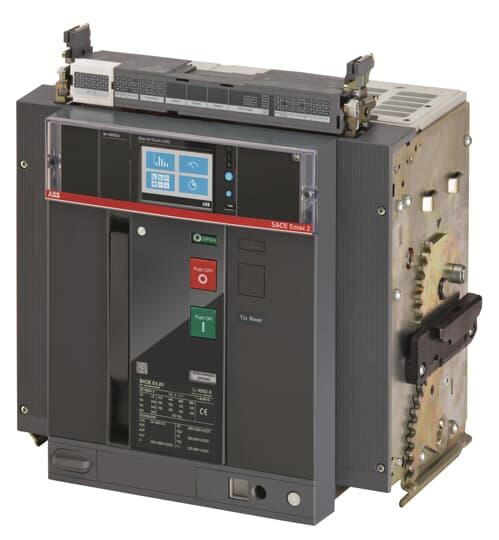

ABB E4.2N 4000 EKIP TOUCH LSIG 3P WMP 1SDA072546R1
