Specifications

Interlockable	Yes
Suitable For	Distribution Board Installation
Version	Withdrawable
Brand	ABB
Product Type	Non-automatic ACB
Type	Main Switch
EAN	8015644773526
AC Voltage (V)	690
Current Rating (A)	3200
Current Type	AC
Design of Control Element	Push Button
Main Circuit Electrical Connection	Bolt Connection
Maximum Operational Voltage AC (V)	690
No. of Poles	3
Power Loss (W)	743
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Insulation Voltage AC (V)	1000
Rated Operational Current AC-21A 415V (A)	3200
Rated Operational Current AC-23A 380-415V (A)	3200
Rated Operational Voltage (V)	690
Rated Short-Time Withstand Current - Icw (kA)	66
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Short-time Withstand Current - Icw (kA/3s)	50
Rated Uninterrupted Current - Iu (A)	3200
Rated Voltage (V)	690
Dimensions (mm)	425W x 425H x 383D
Degree of Protection	IP30
Poles	3P
Icw (kA/1s) - Short-time Withstand Current Rating	66
Icw (kA/3s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	3200
Component Type	Withdrawable

Description

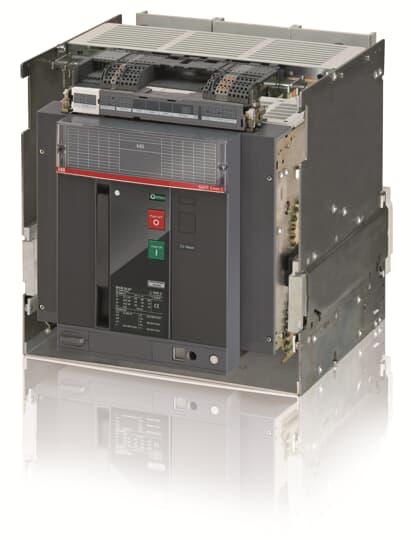

MOVING PART FOR C.BREAKER SWITCH-DISCONNECTOR SACE EMAX2 E4.2N/MS 3200 THREE-POLE
