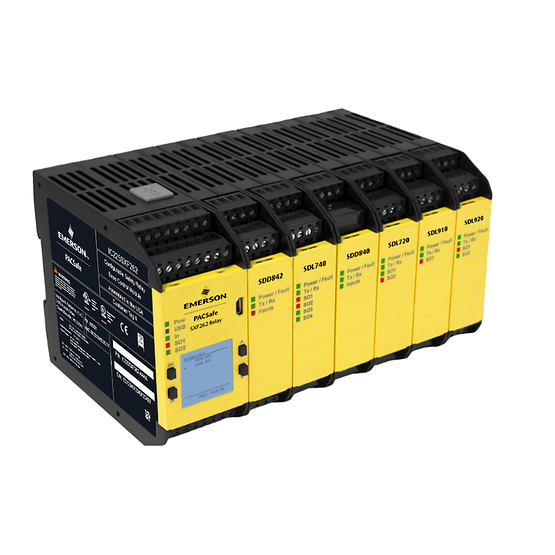

Flexible and intuitive icon-based programming with drag-and-drop configuration. Pre-configured safety function blocks to simplify application programming. Twenty-six inputs, including eight that can be used as non-safe outputs. Two OSSD outputs, each can be split into two single-channel safety outputs. Expandable models for adding up to 8 additional I/O modules. Standard Industrial Ethernet, optional LCD Display, and accessories for full customization.

Specifications

Maximum Temperature (°C)	55?C
Relative Humidity	90% at 50?C
Brand	Emerson
Product Type	Controller
Input Current (mA)	Safety Input - Dual Channel (Dry Contact): 5-50 mA at 24 VDC, Safety Input - Dual Channel (Solid-State): 50 mA at 15 - 30 VDC, Safety Input - Reset: 5-50 mA at 24 VDC
Input Operation	Simultaneous or Concurrent
Module Type	Base Controller
No. of Inputs	Safe Inputs: 26, Convertible Inputs: 8
No. of Outputs	Independently Controlled Safe Outputs: 4
Output Configuration	2 OSSD Pairs, Non-Safe Output Configuration: Up to 11 PNP
Rated Supply Voltage DC (V)	24
Terminal Type	Screw (Spring Clamp available as an accessory)
Dimensions (mm)	110H x 45W x 129D
Vibration	9-150 Hz at 1g Occasional/0.5g Continuous
Degree of Protection	IP 20
Pollution Degree	IP20
Standards and Approvals	Category 4, PL e (EN ISO 13849), SIL CL 3 (IEC 62061, IEC 61508)
