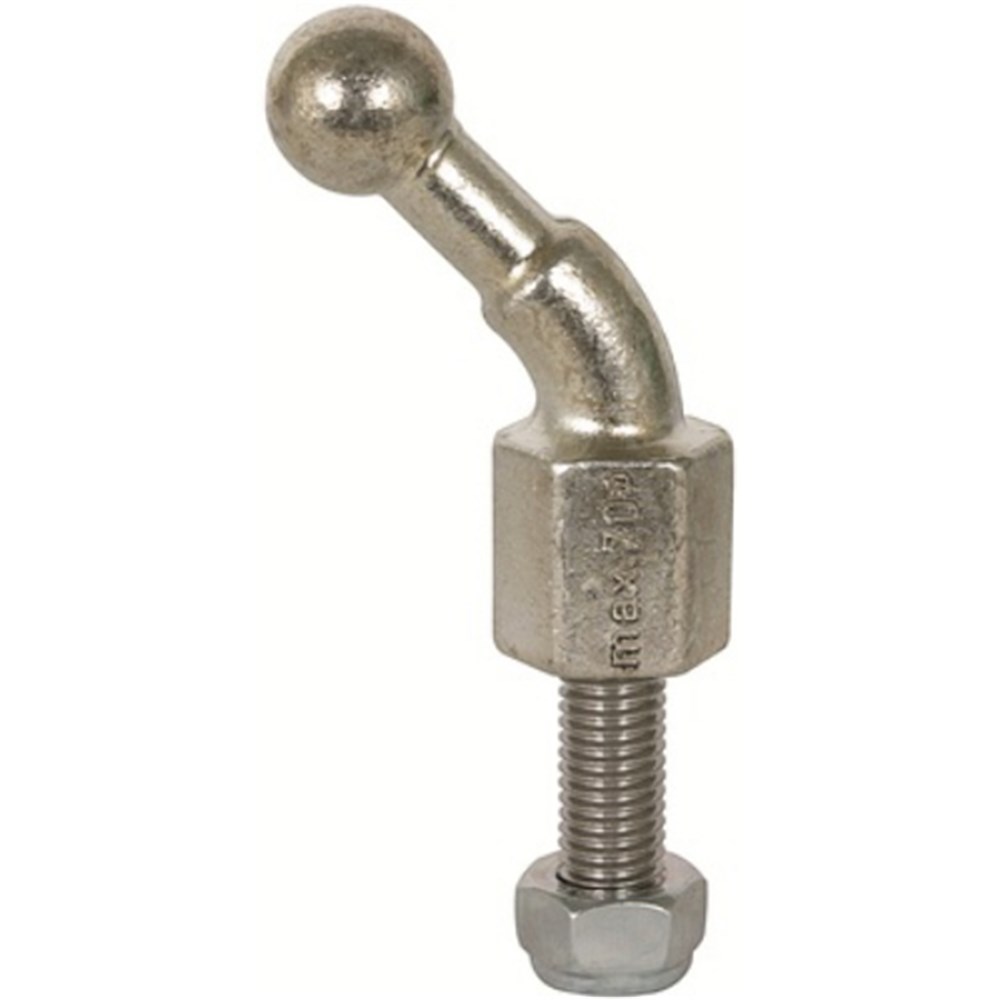

Fixed ball point 45° angled with threaded pin and self-locking nut as line Earth connection point at the conductor and earth-termination system High mechanical strength due to female thread (not cut) Suitable for fixing cable lugs or connecting busbars

Specifications

Material	E-Cu/gal Sn
Outer Diameter (mm)	25
Reference No.	756245
Suitable For	Earthing
Brand	DEHN
Product Type	Conductor Holders
Type	Short-Circuiting Devices
Mounting Method	With thread bolt
Connection Type	Fixed ball point 25 mm
Maximum Output Short-circuit Current (A)	26.5k (0.5s)
Dimensions (mm)	M12 x 45
Weight (kg)	0.43
Wire Cross Section (mm²)	95
Weight (g)	434.4
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100), DIN 43673-1
