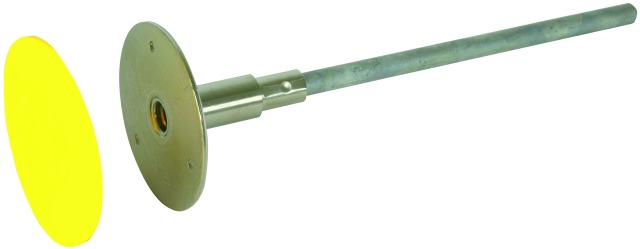

DEHN FIXED EARTHING TERM. M TYPE FO WITH COMPRESSED TERMINAL AXIS, 478041 - Lightning & Surge Protection

Product Code: 478041

Fixed earthing terminal Corrosion-free connection of the down conductor e.g. to the building reinforcement or the earth-termination system, for protective equipotential bonding and / or functional equipotential bonding for installation in the formwork Type M with connecting shaft (10 mm) and M10 / 12 connection thread

Specifications

Material	Stainless steel 316 (V4A)
Reference No.	478041
Brand	DEHN
Product Type	Earthing
Type	Lightning Protection
Connection Type	M10 / M12
Suitable Bolt Size	10
Dimensions (mm)	9W x 25H x 9D
Weight (kg)	0.304
Standards and Approvals	EN 62561-1
