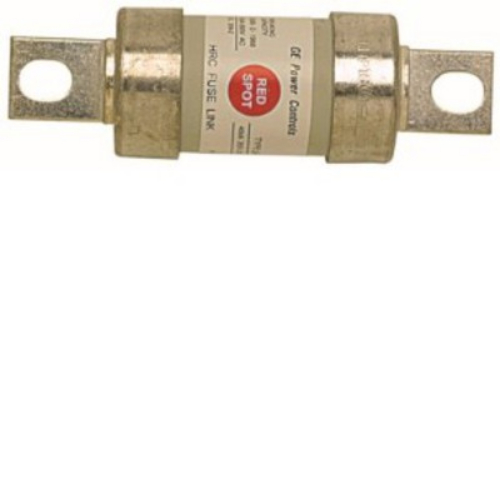

IPD FUSE LINK 125A 690VAC OFF-SET TAG 94mm FIXING 80kA, 400287 TFP125

Product Code: TFP125

TFP offset bolted tags-2hole fixing BS fuse links (in sizes A1 to A4) are designed for general industrial applications. They comply with the standard BS88-2 and IEC 60269-2. These fuse links have a breaking range and utilisation category of gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. The rated current is 125A, and the voltages are 690VAC/350VDC.

Technical Specifications

Pack Quantity 5
Brand IPD
Maximum Ambient Temperature (°C) 40
Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Fuse Shape Offset slotted bolted tags
Fuse Type BS88/A4
Insulated Metal Gripping Lugs No
Rated Current (A) 125
Rated Voltage AC (V) 690
Rated Voltage DC (V) 350
Suitable Fuse Holder RSM160
Body Diameter (mm) 34.9
Fixing Centres (mm) 94
Utilisation Category gG
Voltage Type AC/DC
Standards BS 88-2, AS 60269, IEC 269-2-1, ASTA20
