Industrial Fuse Links

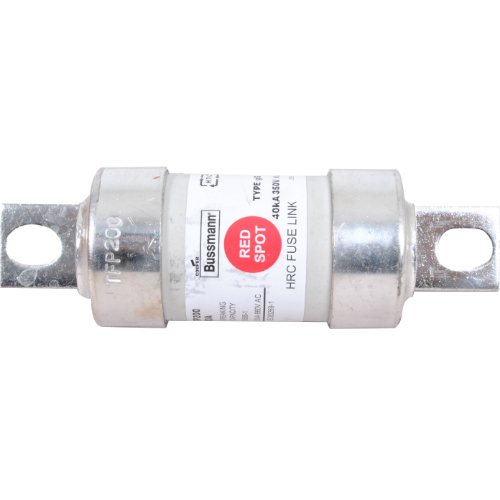

IPD FUSE LINK 200A 690VAC OFF-SET TAG 94mm FIXING 80kA 400289 TFP200

Product Code: TFP200

TFP offset bolted tags-2hole fixing BS fuse links (in sizes A1 to A4) are designed for general industrial applications. They comply with the standard BS88-2 and IEC 60269-2. These fuse links have a breaking range and utilisation category of gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. They have a rated current of 200A and can handle voltages of 690VAC/350VDC.

Technical Specifications

Pack Quantity 5
Brand IPD
Maximum Ambient Temperature (°C) 40
Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Fuse Shape Offset slotted bolted tags
Fuse Type BS88/A4
Insulated Metal Gripping Lugs No
Rated Current (A) 200
Rated Voltage AC (V) 690
Rated Voltage DC (V) 350
Body Diameter (mm) 34.9
Fixing Centres (mm) 94
Utilisation Category gG
Voltage Type AC/DC
Standards BS 88-2, AS 60269, IEC 269-2-1, ASTA20
