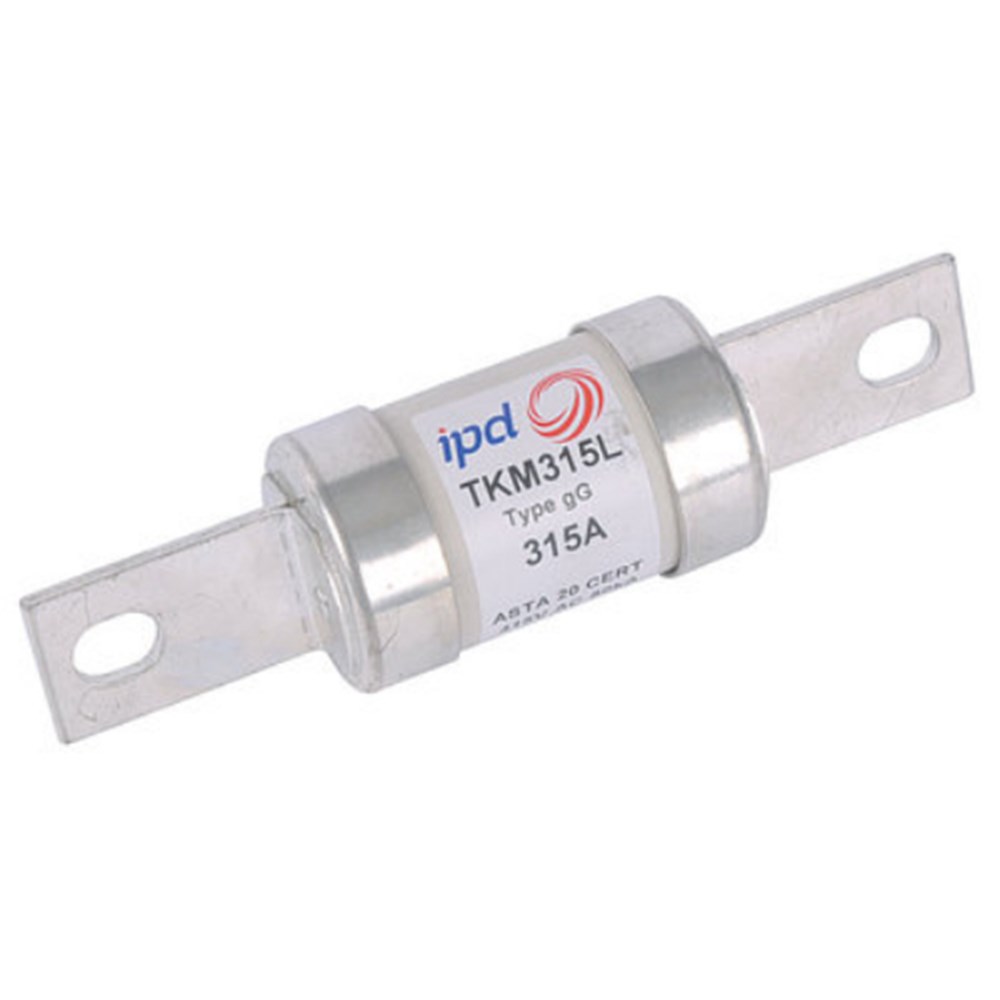

IPD TKM315L FUSE LINK 315A 415VAC CENTRE TAG 133mm FIXING CENTRES 80kA BTKM42V315

Product Code: TKM315L

TKM_L centre bolted tags-2hole fixing BS fuse links are designed for general industrial applications. They comply with the standard BS88-2 and IEC 60269-2. These fuse links have a breaking range and utilisation category of gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. They have a rated current of 315A and a voltage rating of 415VAC.

Technical Specifications

Carton Quantity 1
Brand IPD
Breaking Capacity AC (kA) 80
Breaking Capacity DC (kA) 40
Rated Current (A) 315
Rated Voltage AC (V) 415
Body Diameter (mm) 41.9
Fixing Centres (mm) 133
Utilisation Category gG
