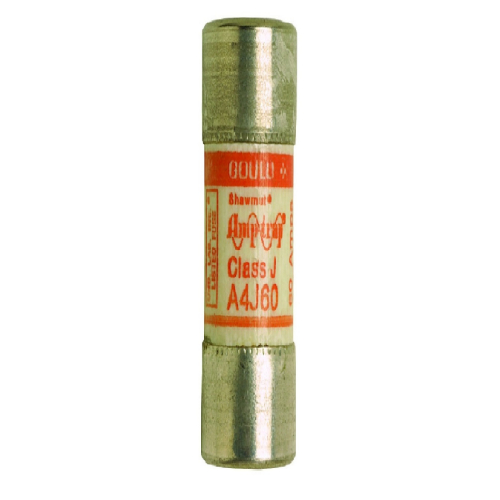

MERSEN A4J60 FUSE LINK 60A 600VAC 300VDC CLASS J FAST ACTING 27X60mm FERRULE

Product Code: A4J60

  • - High current limitation for low peak let-thru current - Unique dimensions prevent replacement by other fuse classes - Fiberglass body provides dimensional stability in harsh industrial environments - Fast Acting
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Style Ferrule
Brand MERSEN
Product Type UL North American
Functionality Fast Acting
Fuse Class Class J
Interrupting Rating AC (kA) 200
Interrupting Rating DC (kA) 100
Rated Current (A) 60
Rated Voltage AC (V) 600
Rated Voltage DC (V) 300
Body Size (mm) 27 x 60

Description

The A4J Fast-acting Class 'J' ferrule type fuses provide excellent current-limiting protection for various applications such as capacitors, load centers, panelboards, switchboards, busducts, feeder circuits, circuit breakers, lighting, heating, and general loads. These fuses have a voltage rating of 600VAC/300VDC and a rated current of 60A.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
