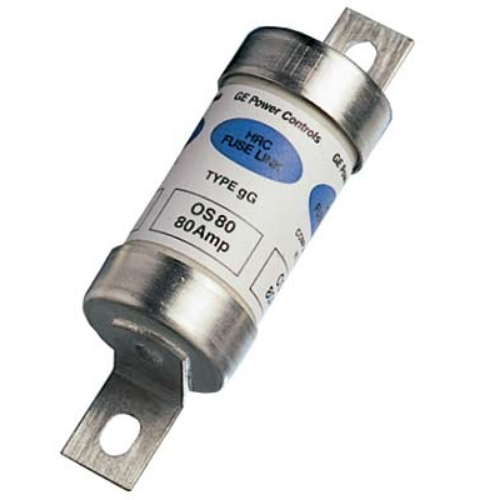

IPD OS80 FUSE LINK 80A 415VAC OFF-SET TAG 73mm FIXING CENTRES 80kA USE IN RSM100H, 400234

OS offset bolted tags-2hole fixing BS fuse links (in sizes A1 to A4) are designed for general industrial applications. They comply with the standard BS88-2 and IEC 60269-2. These fuse links have a breaking range and utilisation category of gG, providing good peak and let-through current limitation. The breaking capacity is AC: ASTA 20 certified to 80 kA. The rated current is 80A, and the voltage is 415VAC.
