IPD HBASE 600H X 600W X 200D GREY IP66, ASSEMBLED, 4 X 26 DIN HMSB606020G

Product Code: HMSB606020G

  • Durable metal construction IP66-rated for dust and water protection Secure 5mm double bit lock Compact wall-mount design Grey colour
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Colour Grey
Door Type Single
No. of Locks 2
Material Mild Steel
No. of Doors Single
No. of Hinges 2
No. of Rows 4
Mounting Type Wall
Brand IPD
Product Type Mil Steel Enclosure
Maximum Operational Voltage (V) 1000
Dimensions (mm) 600H x 600W x 200D
No. of Modules 4 x 26 DIN
Usable Internal Space (mm) 550W x 550H x 179D
Degree of Protection IP66

Description

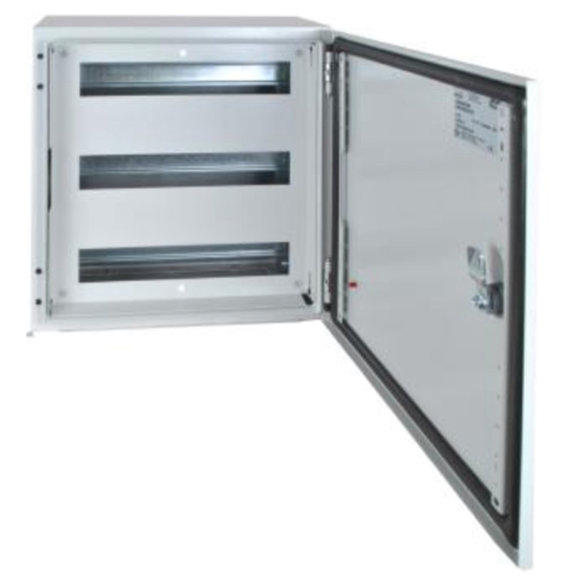

Metal H-base enclosure, grey RAL7035 polyester powder coat, IP66. Single door with 5mm double bit lock. Compact surface wall mounting and 4 rows of 26P DIN space. Dimensions 600H x 600W x 200Dmm.
