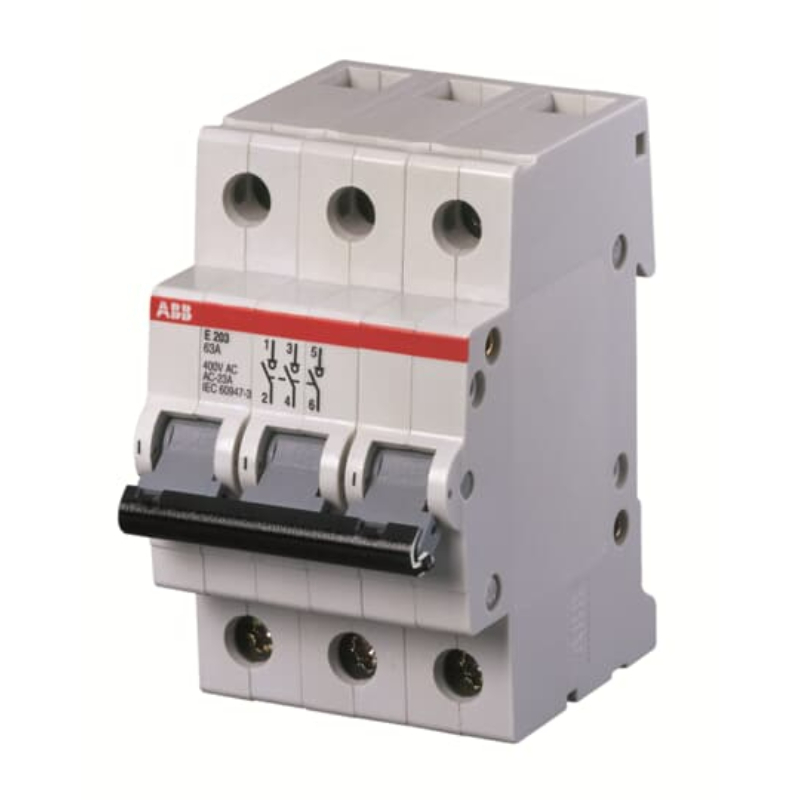

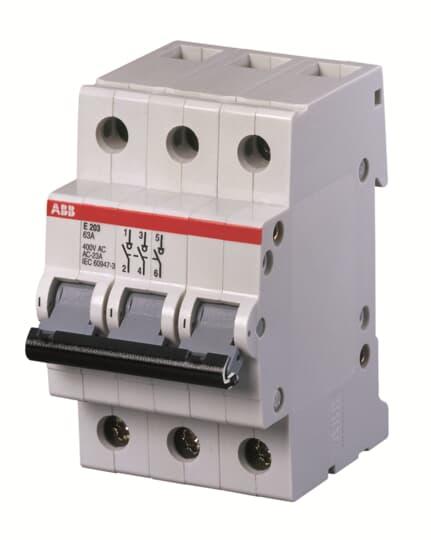

ABB E203125RD SWITCH DISCONNECTOR 3P 125A 230/400VAC

Product Code: E203125RD

  • - Load break switching and isolation - 1P-4P: 230/400VAC to AS/NZS 60947.3
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Housing Material Grey, RAL 7035
Mounting Type DIN Rail
Brand ABB
Product Type Switch Disconnector
Series E200
AC Voltage (V) 230/400
Application Domestic
Current Rating (A) 125
DC Voltage (V) 60
Family E200
Impulse Withstand Voltage (kV/1.2µS) 4
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
No. of Poles 3P
Power Loss (W) 6.1/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 6
Rated Current (A) 125
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 60
Busbar Cross Section (mm²) ≥ 16
Dimensions (mm) 85H x 69D x 52.5W
Pole Width (mm) 17.5
Degree of Protection IP10
Standards and Approvals AS/NZS 60947-3
Poles 3P
Inc-Rated Conditional Short Circuit Capacity (kA) 6

Description

The ABB Switch Disconnector is a 3-pole device designed for load break switching and isolation in domestic applications. It has a current rating of 125A and operates at voltages of 230/400VAC. This switch disconnector provides a reliable and efficient solution for controlling electrical circuits in residential settings.
