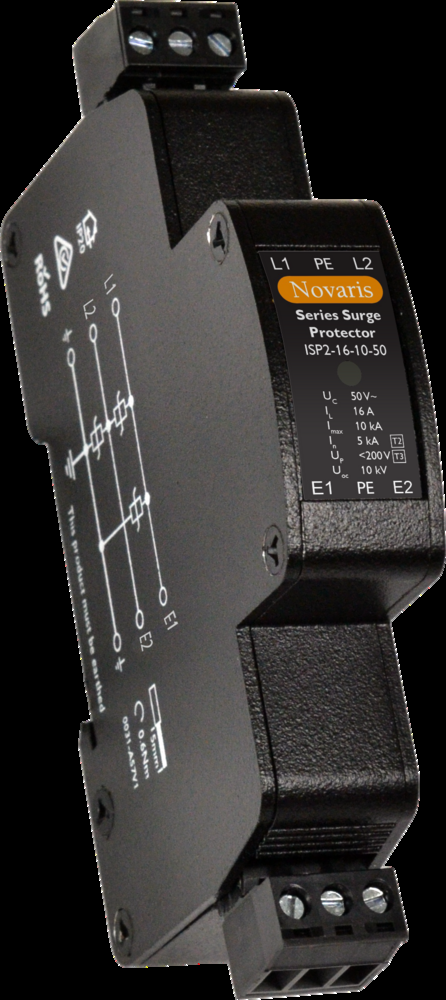

NOVARIS ISP2 SERIES SURGE PROT. 16A, 50VAC, 70VDC ISP2-16-10-50

Product Code: ISP2-16-10-50

  • - All mode protection - LED status - Compact design - Independent let-through voltage - Ideal choice for space restricted applications
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail
Brand NOVARIS
Product Type Surge Protection Device
Series ISP
Maximum Continuous Operating Voltage MCOV AC (V) 50
Maximum Continuous Operating Voltage MCOV DC (V) 70
Maximum Discharge Current (8/20µs) - Imax (kA) 10 (L-L, L-PE)
Maximum Load Current - I? (A) 16
No. of Lines 2
Nominal Discharge Current (8/20µs) - In (kA) 5 (L-L, L-PE)
Nominal Voltage AC (V) 45
Dimensions (mm) 18W x 69H x 115L
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.2 (L-L, L-PE)
Weight (g) 150

Description

The Novaris ISP2 series connected surge protectors are designed for low voltage AC and DC power circuits. They provide excellent performance in compact packages suitable for isolated and non-isolated supplies, ensuring maximum protection with a response time of less than 5ns.
