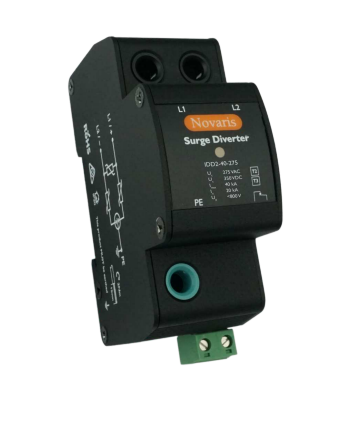

Novaris IDD2 diverters provide surge protection for isolated AC and DC power feeds The IDD2 provides both common and transverse mode protection with earth leakage current in the microamp range Protection is provided for all combinations of lines (L-L, L-E) The IDD2 LED display indicates power status and thermal overload The IDD2 features a passive alarm with a normally closed connection. The earth reference for the product is isolated using a gas discharge tube.

Specifications

Operational Temperature Range (°C)	-40 to 70
Humidity	5 - 95%
Brand	NOVARIS
Product Type	Surge Diverter
Backup fuse rating (A)	32
Connection Type	Shunt
Maximum Continuous Voltage AC (V)	275
Maximum Continuous Voltage DC (V)	350
Maximum Discharge Current (8/20µs) (kA)	40
Modes of Protection	L - N, L - PE
No. of Phases	2
Nominal Discharge Current (8/20µs) - In (kA)	20
Nominal Voltage AC/DC (V)	230
Response Time (ns)	5
Dimensions (mm)	36W x 70H x 95D
Weight (g)	230
Voltage Protection Level - Up (kV)	0.8
