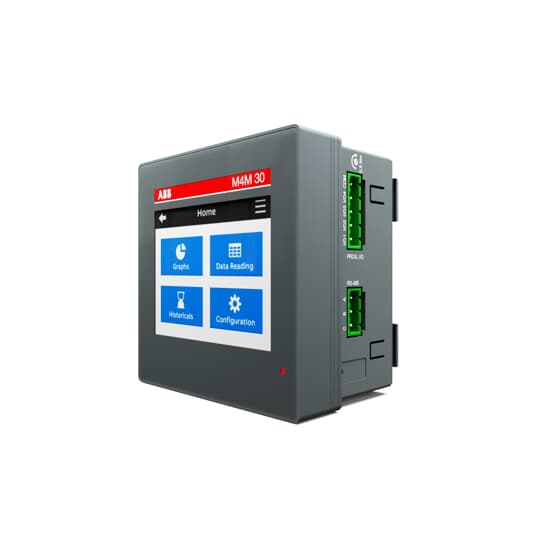

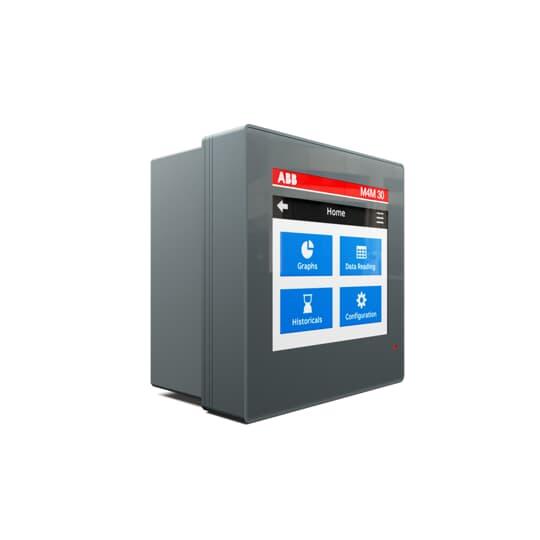

ABB M4M 30 MODBUS NETWORK ANALYZER4 PROGRAMMABLE I/O, AUX SUPPLY48-240 V AC/DC, MODBUS RTU M4M 30 MODBUS

Product Code: M4M 30 MODBUS

The M4M 30 multifunction meter is a versatile device designed for engineers. It features 4 programmable I/O, bluetooth and Modbus RTU communication, and an auxiliary supply of 48-240VAC/DC at 50/60Hz. With an accuracy class of 0.5S to IEC61557-12 and a degree of protection IP54, this meter ensures precise measurements and reliable performance. The meter offers multi-measurement capabilities including currents, voltages, frequency, power factors, and timers. It supports metering for active energy, reactive energy, apparent energy, 4 quadrants energy (Import/Export), and tariffs. Additionally, it provides power quality analysis and energy efficiency evaluations. Equipped with a touchscreen colour display, the M4M 30 meter allows for easy navigation and monitoring. Its panel mount design with dimensions of 96x96mm ensures convenient installation in various applications.

Technical Specifications

Accuracy Class Active Energy
Frequency Range (Hz) 50 - 60
I/O Option 4 programmable I/O
Meter Type Transformer connected
Net Weight (g) 341
Net Weight (kg) 0.341
No. of Counter Positions 8
Number of Counter Positions 8
Power Consumption (VA) 10
Pulse Output Rate 1 … 999999
Type of Indicator Digital
Voltage Range 50 … 400 V
Brand ABB
Accuracy ±0.5%
Communication Modbus RTU, Bluetooth
Current Rating (A) 5
Degree of Protection IP54
Dimensions (mm) 96 X 96 X 77
Display Screen Type Digital
Mounting Type Front Panel
No. of Phases Three-phase
No. of Poles 3P or 4P
Operational Temperature Range (°C) -25 to +70
Rated Current (A) 5 Maximum 6
Rated Frequency (Hz) 50 / 60
Rated Voltage (V) 3 x 230 (400)
Width in Number of Modular Spacings 5.5
