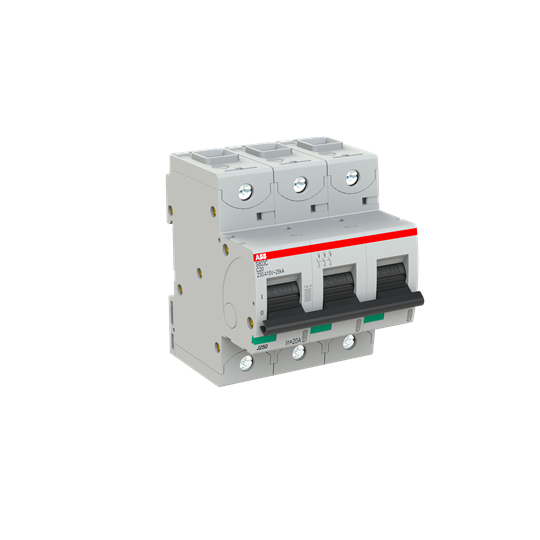

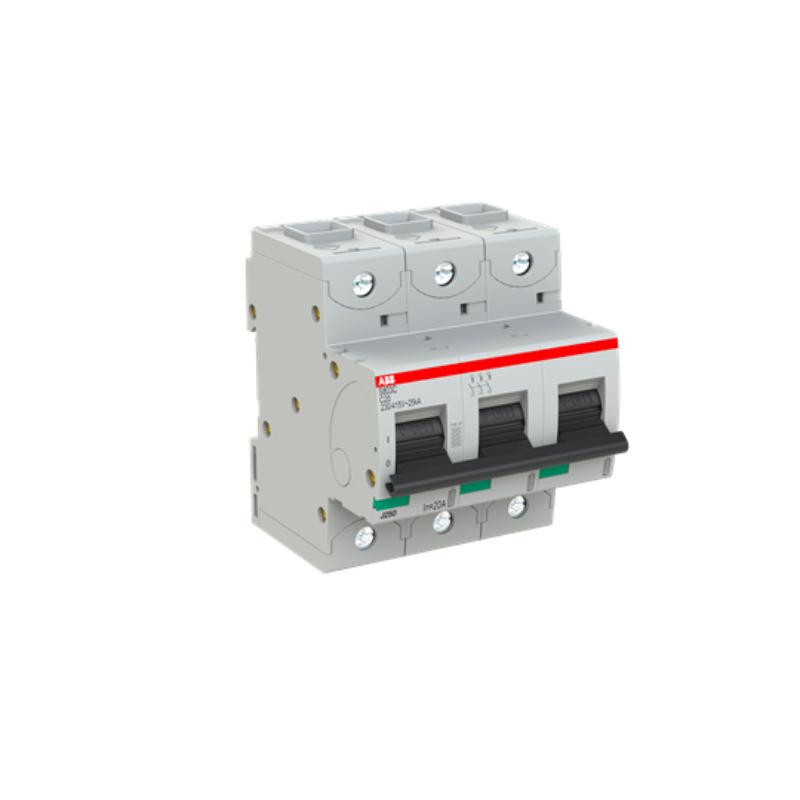

ABB S803CC20 HIGH PERF. MCB 25kA 3P 20A 415VAC C CURVE

Product Code: S803CC20

  • - Protection against short circuit and thermal overload - Interchangeable terminal, failsafe cage or ring lug terminal - Laser printed data for quick identification - Contact position indication - Finger safety with IP20 terminals - Pole configuration 3P
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Housing Material Insulation group I, RAL 7035
Mounting Type DIN Rail
Brand ABB
Product Type MCB
Series S800C
AC Voltage (V) 230/400
Application Commercial and Industrial
Breaking Capacity 400V AC - Icu (kA) 25
Current Rating (A) 20
Curve Type C Curve
DC Voltage (V) 375
Family S800C
Icn-Rated Short Circuit Capacity (kA) 15
Impulse Withstand Voltage (kV/1.2µS) 8
Maximum Operational Voltage AC (V) 440
Maximum Operational Voltage DC (V) 375
Minimum Operational Voltage AC (V) 12
No. of Poles 3P
Power Loss (W) 3.5/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 25
Rated Current (A) 20
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 500
Rated Operational Voltage AC (V) 230/400
Rated Operational Voltage DC (V) 375
Rated Short-Circuit Capacity - Icn (kA) 15
Rated Voltage AC (V) 400
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Dimensions (mm) 95H x 82.5D x 81W
Trip Curve C Curve
Pole Width (mm) 27
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Poles 3P
Breaking Capacity (kA) 25 @400 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 25

Description

ABB's high performance Miniature Circuit Breaker offers reliable protection against short circuit and thermal overload. With a 25kA rating at 415VAC and 10kA rating at 375VDC, this 3 pole breaker is designed for commercial and industrial applications. It has a C curve protection characteristic and a pole width of 27mm. Trust ABB for top-quality circuit breakers that deliver exceptional performance.
