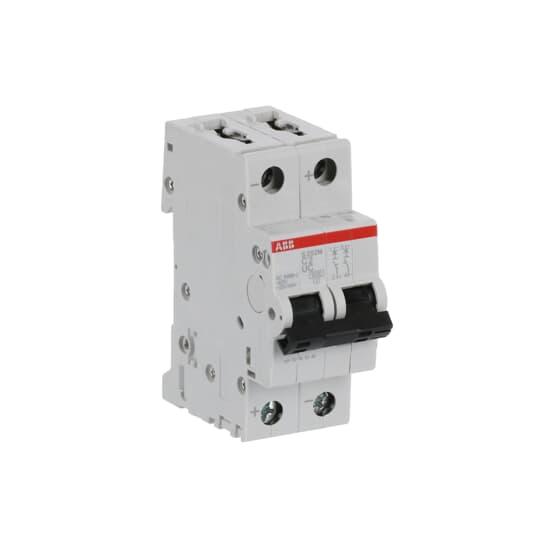

ABB S202MC2UC MCB 10kA 2P 2A 440VDC C CURVE INDUSTRIAL

Product Code: S202MC2UC

  • - Protection against short circuit and thermal overload - Twin terminal for separate feeding of busbar and conductor - Contact Postion Indication - Captive screws - Finger safety with IP20 terminals - Pole configuration 2P
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Housing Material Insulation group I, RAL 7035
Mounting Type DIN Rail
Brand ABB
Product Type MCB
Series S200MUC
AC Voltage (V) 400/415
Application Commercial and Industrial
Breaking Capacity 400V AC - Icu (kA) 15
Current Rating (A) 2
Curve Type C Curve
DC Voltage (V) 440
Family S200MUC
Icn-Rated Short Circuit Capacity (kA) 10
Impulse Withstand Voltage (kV/1.2µS) 4
Maximum Operational Voltage AC (V) 440
Maximum Operational Voltage DC (V) 500
Minimum Operational Voltage AC (V) 12
Minimum Operational Voltage DC (V) 12
No. of Poles 2P
Power Loss (W) 1.45/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 15
Rated Current (A) 2
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 484
Rated Operational Voltage AC (V) 400
Rated Operational Voltage DC (V) 440
Rated Short-Circuit Capacity - Icn (kA) 10
Rated Voltage AC (V) 400
Busbar Cross Section (mm²) Top/Bottom - 10/10
Cable Cross Section - Flexible (mm²) Top/Bottom - 25/25
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 35/35
Dimensions (mm) 85H x 69D x 35W
Trip Curve C Curve
Pole Width (mm) 17.5
Degree of Protection IP20
Pollution Degree 2
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2,UL 1077
Poles 2P
Breaking Capacity (kA) 15 @400 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 15

Description

The ABB MCB is a 2-pole circuit breaker designed specifically for DC applications. It offers 10kA protection at 440VDC, making it suitable for both commercial and industrial use. With a C curve rating, it provides reliable protection against short circuits and thermal overload. Trust ABB's commercial and industrial range for your circuit protection needs.
