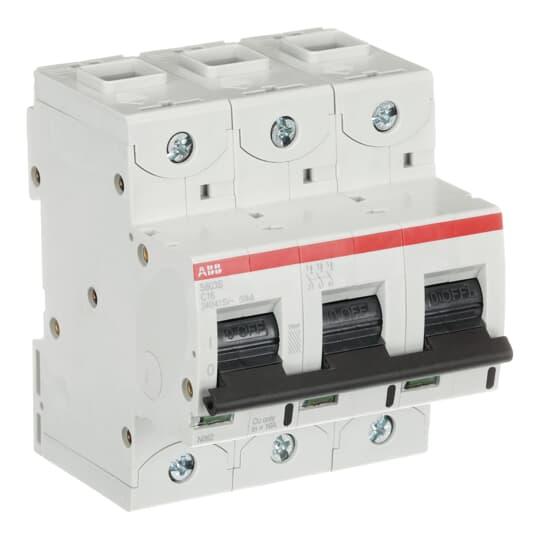

ABB S803SC16 HIGH PERF. MCB 50kA 3P 16A 415VAC C CURVE

Product Code: S803SC16

  • Protection against short circuit and thermal overload Interchangeable terminal, failsafe cage or ring lug terminal Laser printed data for quick identification Contact position indication Finger safety with IP20 terminals Pole configuration 3P
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Housing Material Insulation Group I, RAL 7035
Width in Number of Modular Spacings 4.5
Mounting Type DIN Rail
Minimum Temperature (°C) -25
Brand ABB
Product Type MCB
Series S800S
AC Voltage (V) 400/690
Application Commercial and Industrial
Breaking Capacity 230V AC - Icu (kA) 50
Breaking Capacity 400V AC - Icu (kA) 6
Current Limiting Class 3
Current Rating (A) 16
Curve Type C Curve
DC Voltage (V) 375
Family S800S
Icn-Rated Short Circuit Capacity (kA) 25
Impulse Withstand Voltage (kV/1.2µS) 8
Maximum Operational Voltage AC (V) 690
Maximum Operational Voltage DC (V) 375
No. of Poles 3
No. of Protected Poles 3
Overvoltage Category 4
Power Loss (W) 9.3
Rated Conditional Short-Circuit Current - Inc (kA) 50
Rated Current (A) 16
Rated Frequency (Hz) 50
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 690
Rated Operational Voltage AC (V) 400/690
Rated Operational Voltage DC (V) 375
Rated Short-Circuit Capacity - Icn (kA) 25
Rated Voltage (V) 400
Rated Voltage AC (V) 400
Release Type C
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Dimensions (mm) 81W x 95H x 82.5D
Trip Curve C Curve
Pole Width (mm) 27
Voltage Type AC/DC
Built-in Depth (mm) 82.5
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2, UL 1077
Poles 3P
Breaking Capacity (kA) 50 @400 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 50

Description

The S803S-C16 is a 3-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 16 A. It is a current limiting device with a maximum breaking capacity of 50kA at 240/415V. It can be used for voltages up to 400/690V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S803S-C16 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S803S-C16 more comfortable. Due to the fast arc extinction of S803S-C16 your application will be secured.
