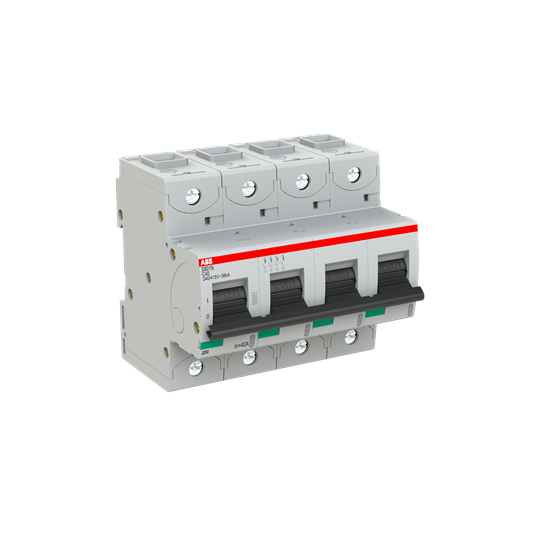

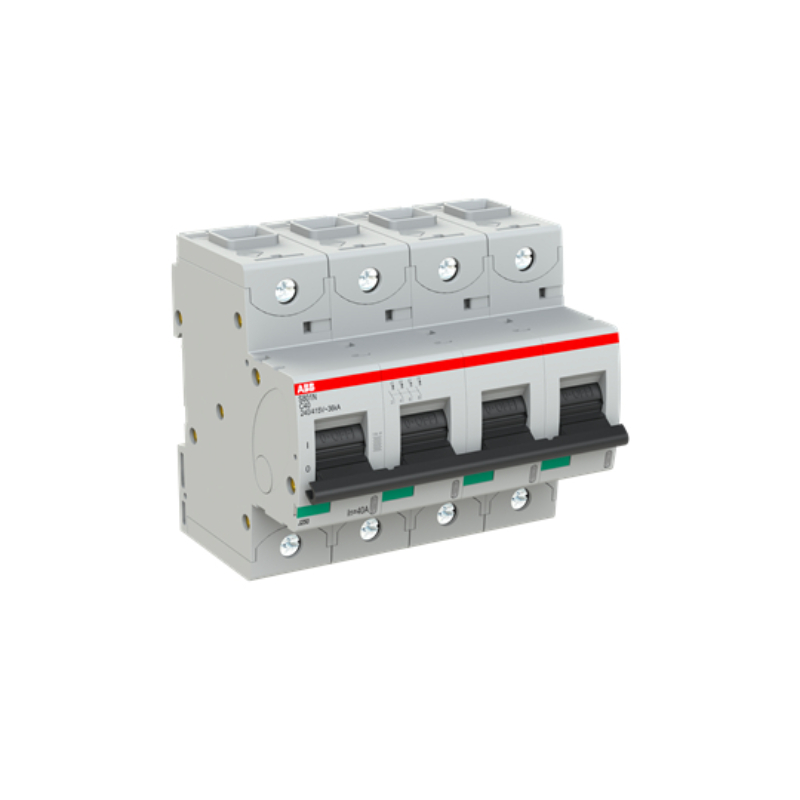

ABB S804NC40 HIGH PERF. MCB 36kA 4P 40A 415VAC C CURVE

Product Code: S804NC40

  • - Protection against short circuit and thermal overload - Interchangeable terminal, failsafe cage or ring lug terminal - Laser printed data for quick identification - Contact position indication - Finger safety with IP20 terminals - Pole configuration 4P
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Housing Material Insulation group I, RAL 7035
Mounting Type DIN Rail
Brand ABB
Product Type MCB
Series S800N
AC Voltage (V) 400/690
Application Commercial and Industrial
Breaking Capacity 400V AC - Icu (kA) 36
Current Rating (A) 40
Curve Type C Curve
DC Voltage (V) 500
Family S800N
Icn-Rated Short Circuit Capacity (kA) 30
Impulse Withstand Voltage (kV/1.2µS) 8
Maximum Operational Voltage AC (V) 690
Maximum Operational Voltage DC (V) 500
Minimum Operational Voltage AC (V) 12
No. of Poles 4P
Power Loss (W) 3.7/Pole
Rated Conditional Short-Circuit Current - Inc (kA) 36
Rated Current (A) 40
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 8
Rated Insulation Voltage (V) 690
Rated Operational Voltage AC (V) 400/690
Rated Operational Voltage DC (V) 500
Rated Short-Circuit Capacity - Icn (kA) 30
Rated Voltage AC (V) 400
Cable Cross Section - Flexible (mm²) Top/Bottom - 70/70
Cable Cross Section - Solid/Stranded (mm²) Top/Bottom - 50/50
Dimensions (mm) 95H x 82.5D x 106W
Trip Curve C Curve
Pole Width (mm) 27
Degree of Protection IP20
Pollution Degree 3
Standards and Approvals AS/NZS 60898-1,AS/NZS 60947-2
Poles 4P
Breaking Capacity (kA) 36 @400 V AC
Inc-Rated Conditional Short Circuit Capacity (kA) 36

Description

The ABB Miniature Circuit Breaker is a high-performance solution designed for commercial and industrial applications. With a 36kA rating at 415VAC and 20kA rating at 500VDC, it offers reliable protection against short circuits and thermal overload. The breaker features 4 poles with a 40A capacity and a C curve. It has a compact design with a pole width of 27mm, making it suitable for various installations. Trust ABB for quality and performance in circuit protection.
