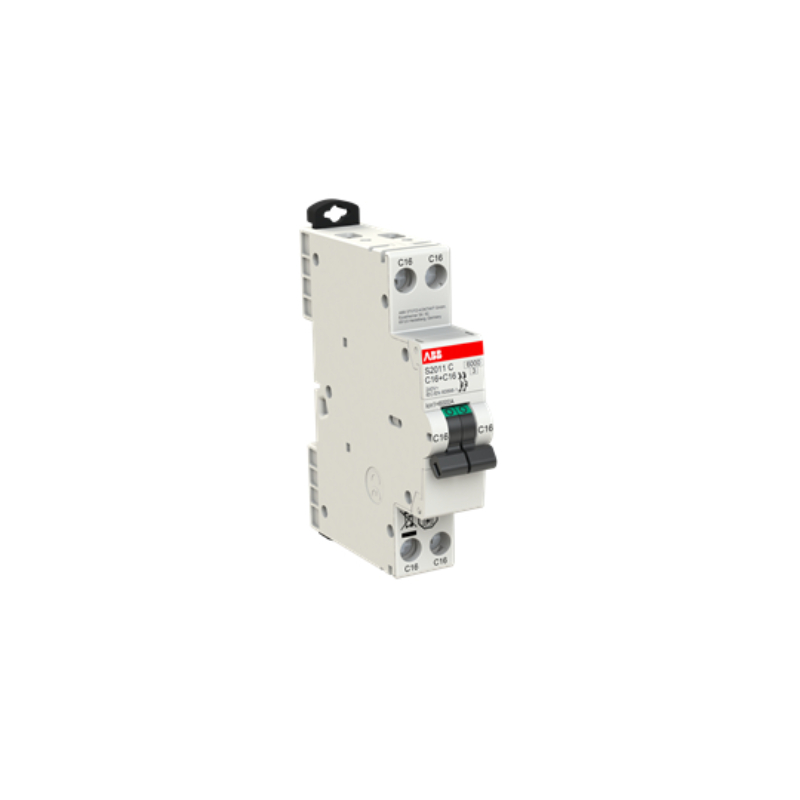

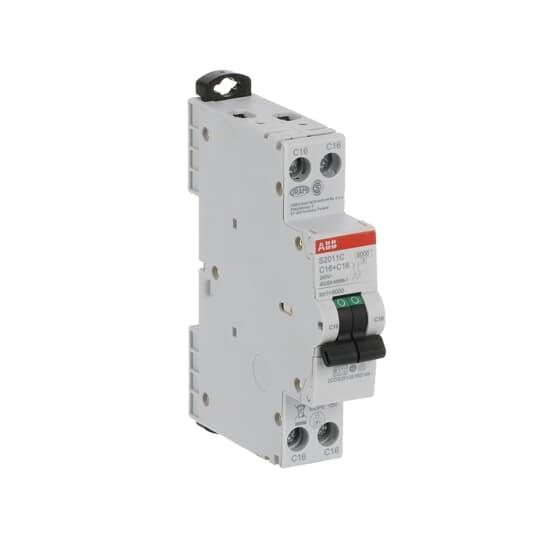

- Protection against short circuit and thermal overload - Twin terminal for separate feeding of busbar and conductor - Contact Postion Indication - Captive screws - Finger safety with IP20 terminals - Pole configuration 1P+1P

Specifications

Operational Temperature Range (°C)	-25 to +55
Brand	ABB
Product Type	MCB
Series	S2011C
AC Voltage (V)	230/240
Breaking Capacity 240V AC - Icu (kA)	6
Current Rating (A)	16
Curve Type	C Curve
Family	S2011C
Impulse Withstand Voltage (kV/1.2µS)	4
No. of Poles	1P+1P
Rated Current (A)	16
Rated Frequency (Hz)	50/60
Rated Impulse Withstand Voltage (kV)	4
Rated Operational Voltage AC (V)	230/240
Dimensions (mm)	18Wx86Hx70D
Trip Curve	C Curve
Degree of Protection	IP20
Poles	1P+1P
Breaking Capacity (kA)	6 @240 V AC
