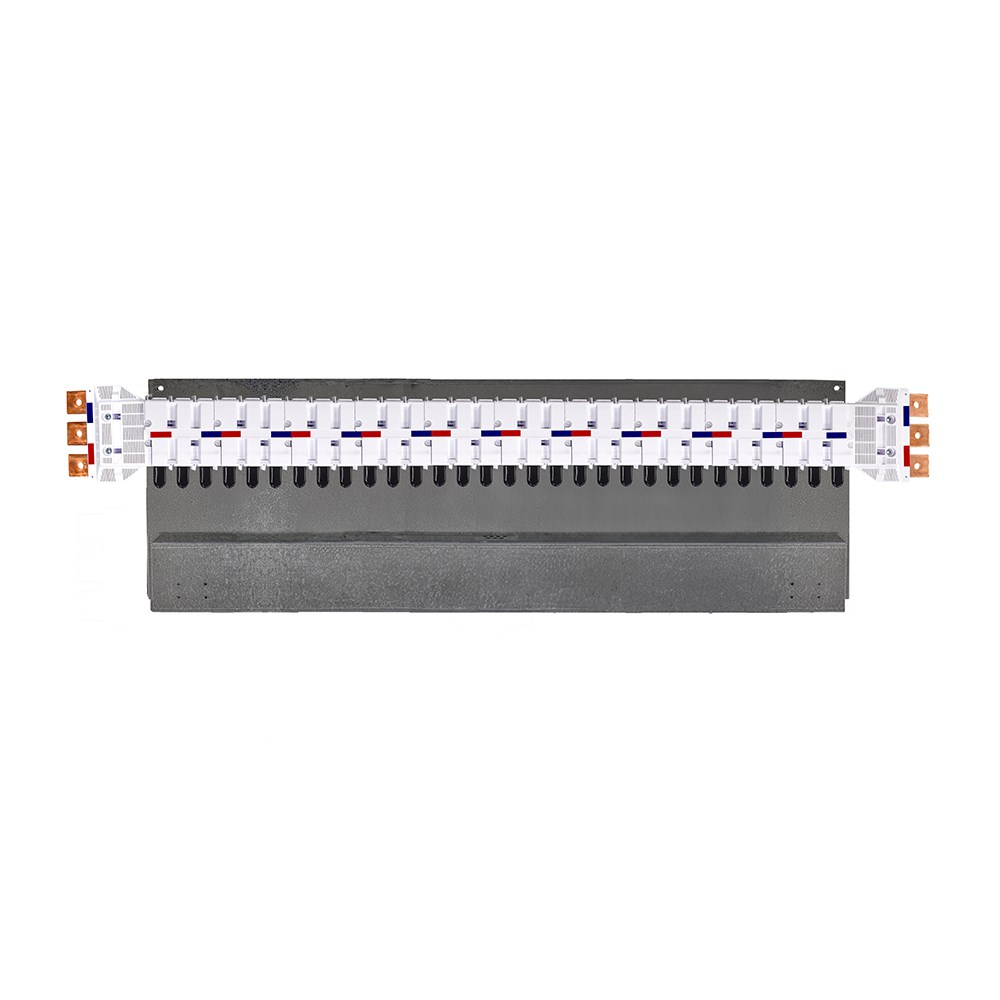

IPD NY63XT1US30 NYBUS CHASSIS 630A 30 POLE UNIVERSAL FEED SINGLE SIDED XT1

Product Code: NY63XT1US30

The NYBUS chassis is designed for use with the XT1 ABB MCCB. It has a 630A rating and features 30 poles. The chassis is single sided and offers universal feed capabilities.

Technical Specifications

Suitable For XT1
Brand IPD
To Suit ABB MCCB - XT1
Busbar Cross Section (mm²) 6.4 X 40
Current Rating (A) 630
Feed Type Universal Feed
No. of Poles 30
Rated Current (A) 630
Rated Short-time Withstand Current - Icw (kA/1s) 36
Type of Feed Universal Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 30
Icw (kA/1s) - Short-time Withstand Current Rating 36
