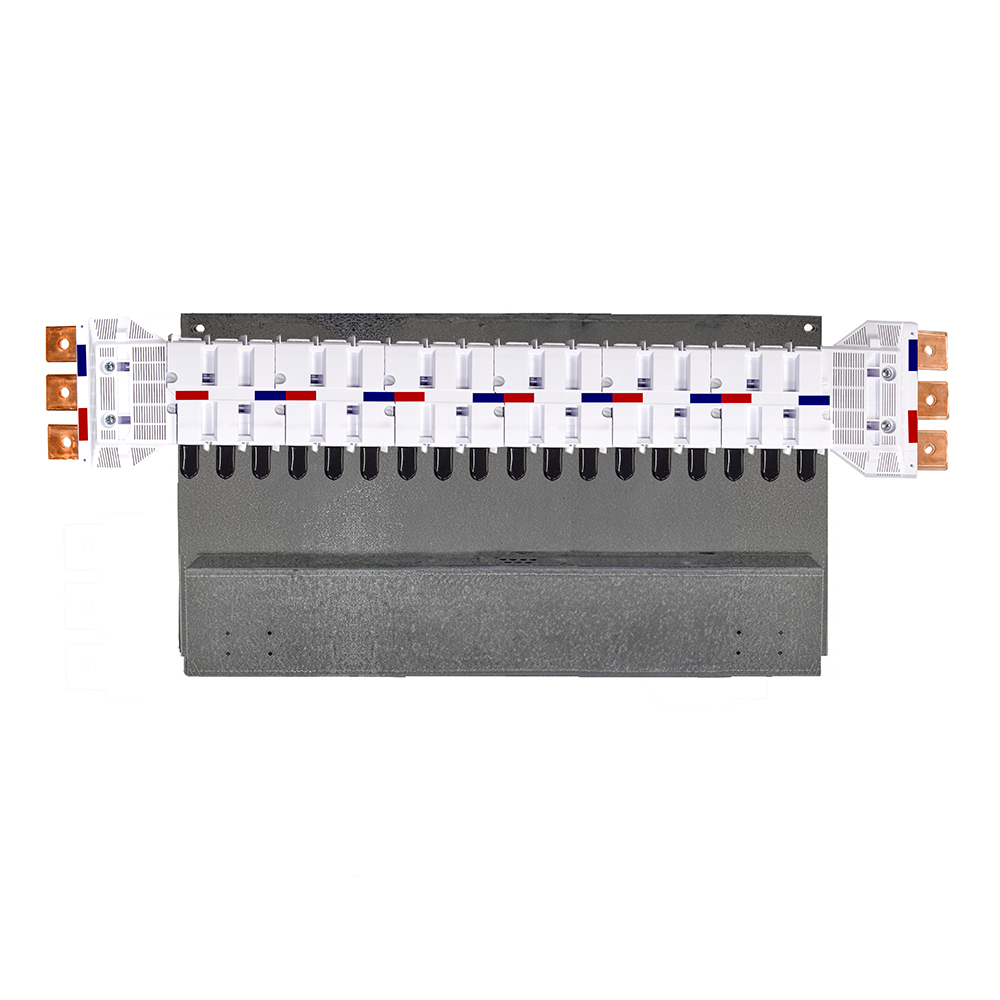

IPD NY80XT1US18 NYBUS CHASSIS 800A 18 POLE UNIVERSAL FEED SINGLE SIDED XT1

Product Code: NY80XT1US18

The NYBUS chassis is designed for use with the XT1 ABB MCCB. It has a current rating of 800A and features 18 poles. The chassis is single sided and offers universal feed capabilities.

Technical Specifications

Suitable For XT1
Brand IPD
To Suit ABB MCCB - XT1
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Universal Feed
No. of Poles 18
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Type of Feed Universal Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 18
Icw (kA/1s) - Short-time Withstand Current Rating 50
