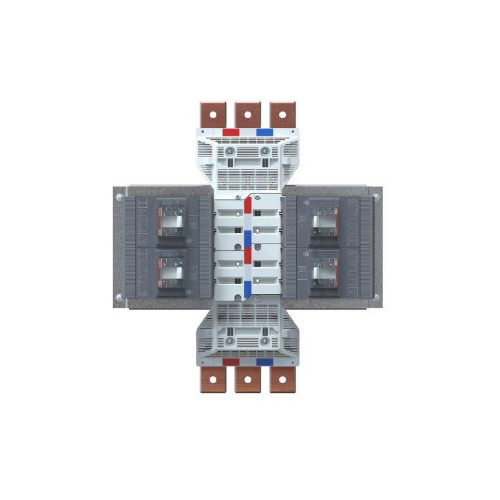

IPD NY63XT2SD06 NYBUS CHASSIS 630A 6 POLE SINGLE FEED DOUBLE SIDED XT2

Product Code: NY63XT2SD06

The NYBUS chassis is designed for use with the XT2 ABB MCCB. It has a 630A rating and features 6 poles, as well as a single feed double-sided configuration.

Technical Specifications

Suitable For XT2
Brand IPD
To Suit ABB MCCB - XT2
Busbar Cross Section (mm²) 6.4 X 40
Current Rating (A) 630
Feed Type Top/Bottom Feed
No. of Poles 6
Rated Current (A) 630
Rated Short-time Withstand Current - Icw (kA/1s) 36
Type of Feed Top/Bottom Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 6
Icw (kA/1s) - Short-time Withstand Current Rating 36
