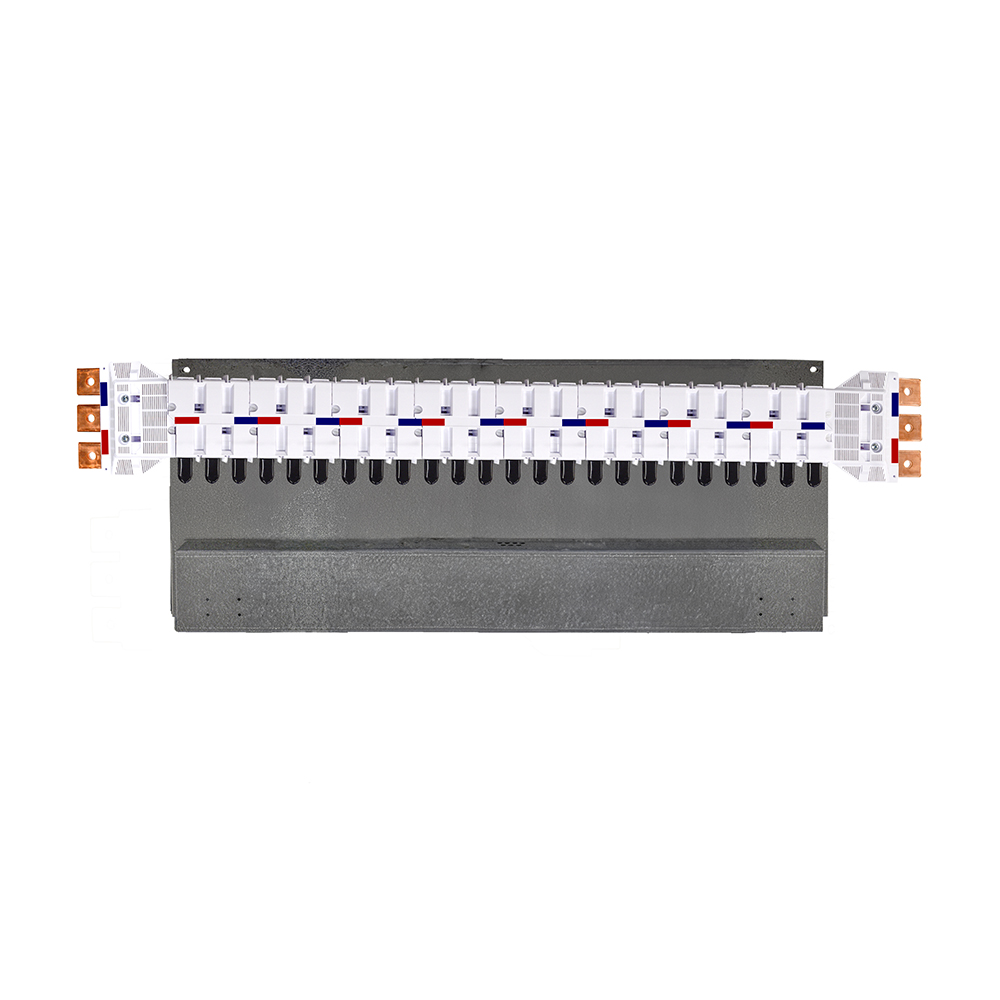

IPD NY80XT2US24 NYBUS CHASSIS 800A 24P UNIVERSAL FEED SINGLE SIDED XT2

Product Code: NY80XT2US24

The NYBUS chassis is designed for use with the XT2 ABB MCCB. It has a 800A rating and features a single-sided universal feed. The chassis has 24 poles, making it suitable for various applications.

Technical Specifications

Suitable For XT2
Brand IPD
To Suit ABB MCCB - XT2
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Universal Feed
No. of Poles 24
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Type of Feed Universal Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 24
Icw (kA/1s) - Short-time Withstand Current Rating 50
