Chassis Systems

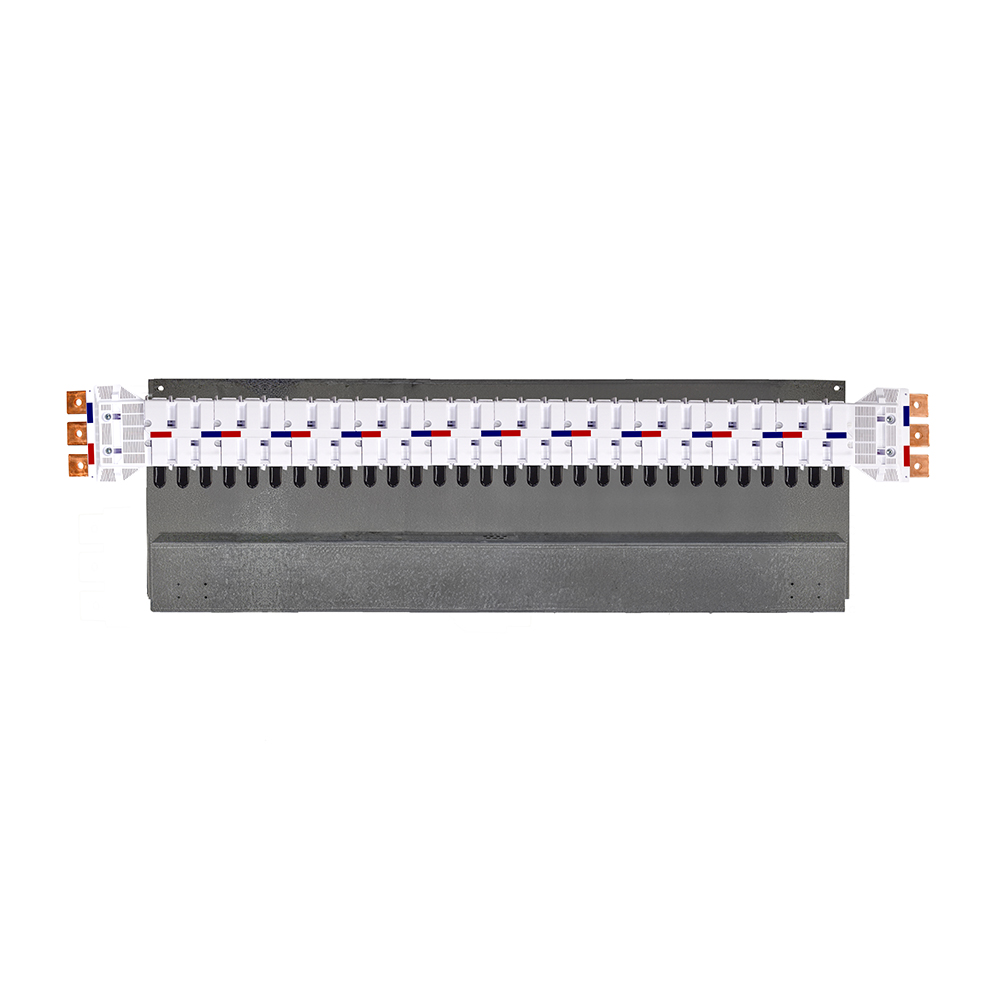

IPD NY80XT2US30 NYBUS CHASSIS 800A 30P UNIVERSAL FEED SINGLE SIDED XT2

Product Code: NY80XT2US30

The NYBUS chassis is designed for use with the XT2 ABB MCCB. It has a current rating of 800A and features a single-sided universal feed. The chassis is equipped with 30 poles, making it suitable for various applications.

Technical Specifications

Suitable For XT2
Brand IPD
To Suit ABB MCCB - XT2
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Universal Feed
No. of Poles 30
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Type of Feed Universal Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 30
Icw (kA/1s) - Short-time Withstand Current Rating 50
