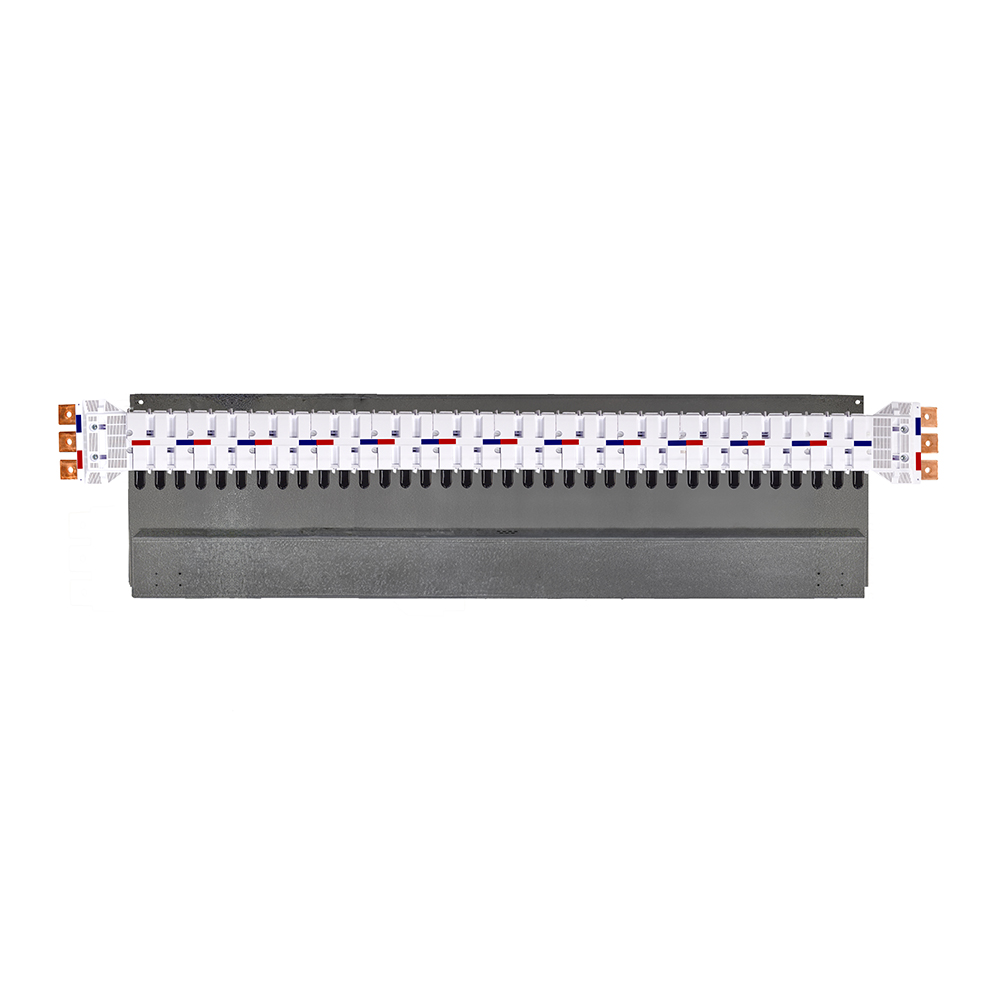

IPD NY63XT4US36 NYBUS CHASSIS 630A 36 POLE UNIVERSAL FEED SINGLE SIDED XT4

Product Code: NY63XT4US36

The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a 630A rating and features 36 poles. The chassis is universal feed and single sided, providing convenience and ease of use for engineers.

Technical Specifications

Suitable For XT3, XT4
Brand IPD
To Suit ABB MCCB - XT3, XT4
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Universal Feed
No. of Poles 36
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Type of Feed Universal Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 36
Icw (kA/1s) - Short-time Withstand Current Rating 50
