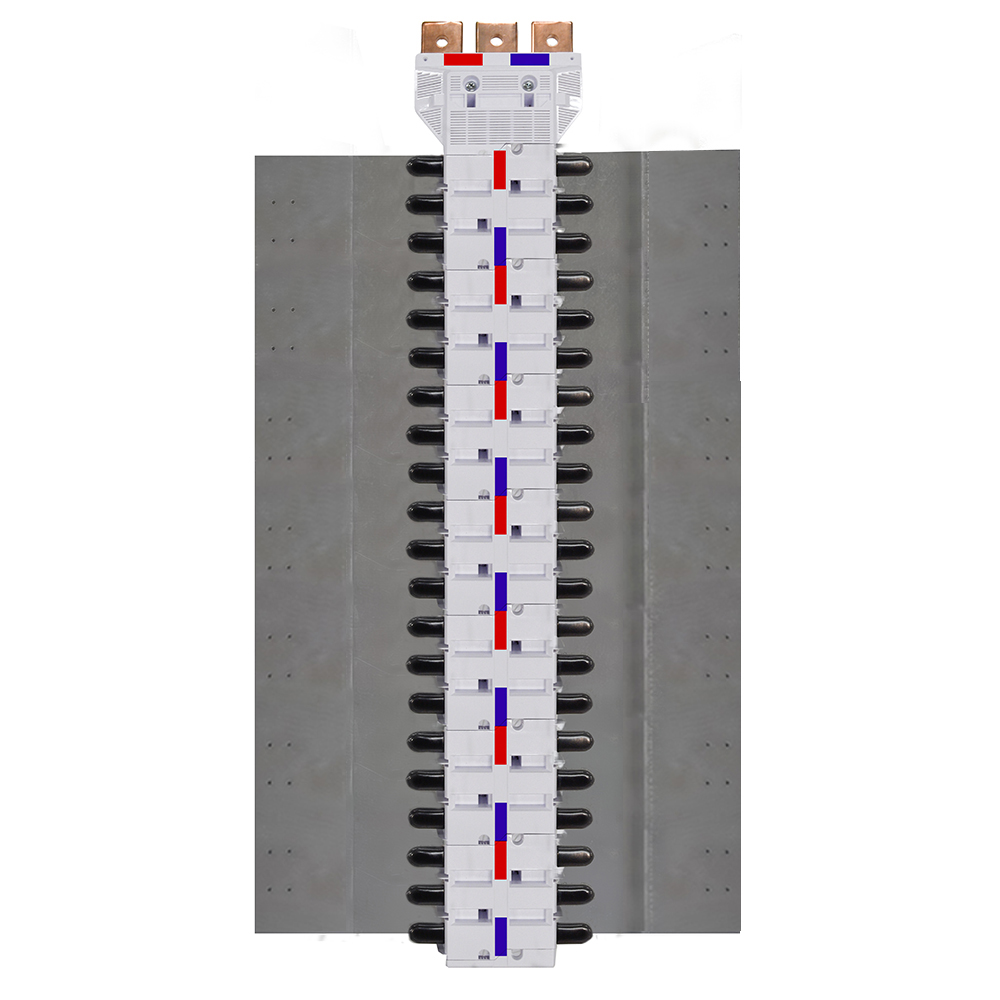

IPD NY63XT4SD42 NYBUS CHASSIS 630A 42 POLE SINGLE FEED DOUBLE SIDED XT4

Product Code: NY63XT4SD42

The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a 630A rating and features 42 poles, with a single feed on each side. This double-sided design allows for efficient power distribution and management.

Technical Specifications

Suitable For XT3, XT4
Brand IPD
To Suit ABB MCCB - XT3, XT4
Busbar Cross Section (mm²) 6.4 X 40
Current Rating (A) 630
Feed Type Top/Bottom Feed
No. of Poles 42
Rated Current (A) 630
Rated Short-time Withstand Current - Icw (kA/1s) 36
Type of Feed Top/Bottom Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 42
Icw (kA/1s) - Short-time Withstand Current Rating 36
