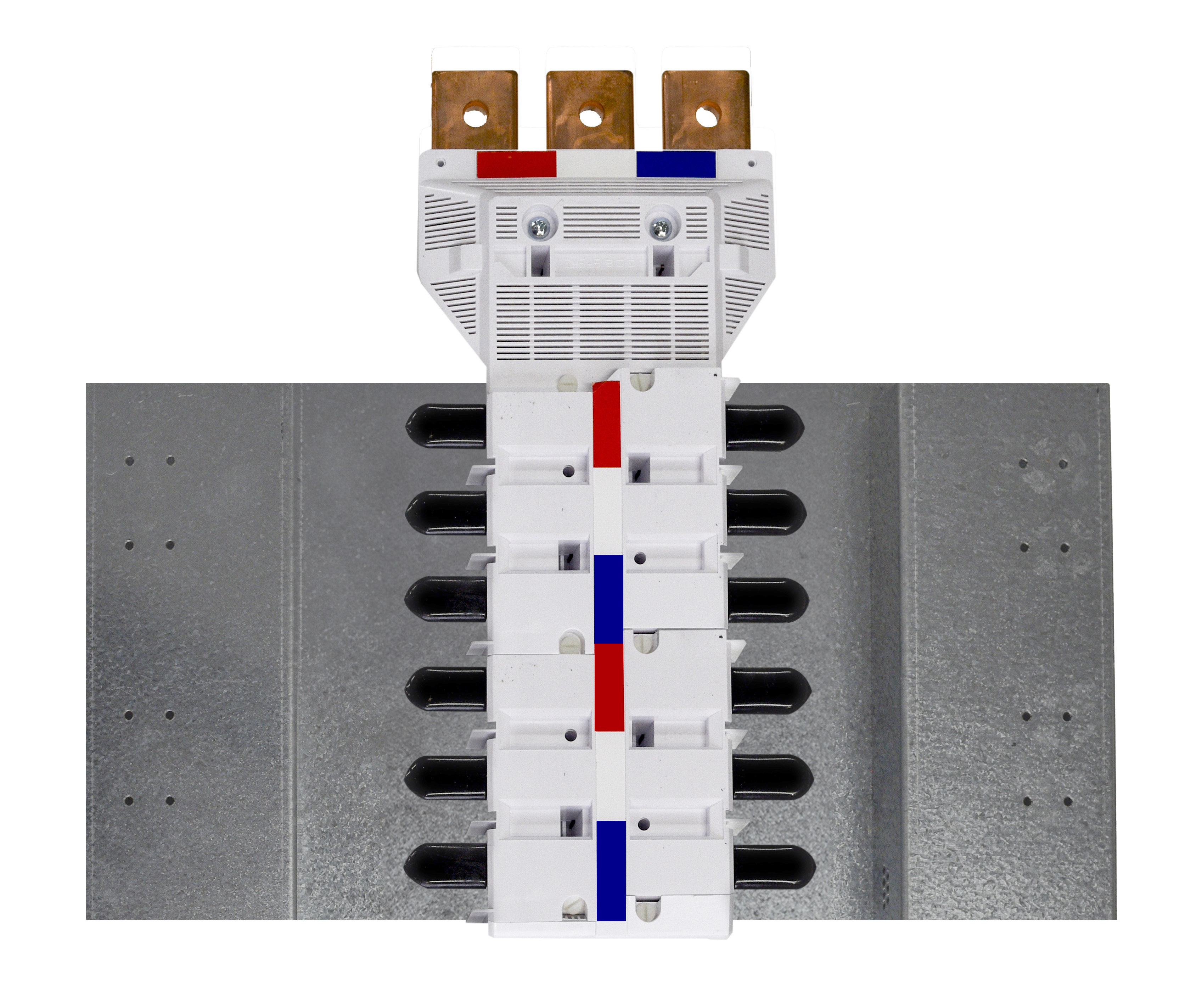

IPD NY80XT4SD12 NYBUS CHASSIS 800A 12P SINGLE FEED DOUBLE SIDED XT4

Product Code: NY80XT4SD12

The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a 800A rating and features 12 poles, with a single feed on each side.

Technical Specifications

Suitable For XT3, XT4
Brand IPD
To Suit ABB MCCB - XT3, XT4
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Top/Bottom Feed
No. of Poles 12
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Type of Feed Top/Bottom Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 12
Icw (kA/1s) - Short-time Withstand Current Rating 50
