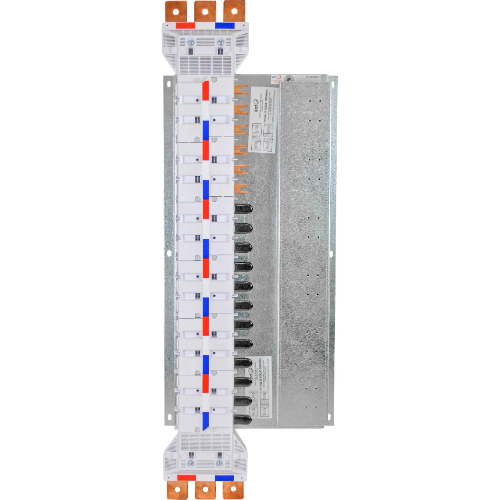

IPD NY80XT4US24 NYBUS CHASSIS 800A 24P UNIVERSAL FEED SINGLE SIDED XT4

Product Code: NY80XT4US24

The NYBUS chassis is designed for use with XT3 and XT4 ABB MCCBs. It has a 800A rating and features a single-sided universal feed with 24 poles.

Technical Specifications

Suitable For XT3, XT4
Brand IPD
To Suit ABB MCCB - XT3, XT4
Busbar Cross Section (mm²) 8 X 40
Current Rating (A) 800
Feed Type Universal Feed
No. of Poles 24
Rated Current (A) 800
Rated Short-time Withstand Current - Icw (kA/1s) 50
Type of Feed Universal Feed
Standards and Approvals Tested to AS/NZS 61439.1:2016
Poles 24
Icw (kA/1s) - Short-time Withstand Current Rating 50
