Specifications

Version	Fixed
Brand	ABB
Product Type	MCCB
EAN	8015644787080
Breaking Capacity 415V AC - Icu (kA)	65
Current Rating (A)	100
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	300 - 1100
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Power Loss (W)	6.6
Rated Current (A)	100
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	300
Rated Insulation Voltage (V)	800
Rated Uninterrupted Current - Iu (A)	125
Rated Voltage (V)	347
Dimensions (mm)	76.2W x 130H x 70D
Trip Unit	MA
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT1 Frame
Poles	3P
Breaking Capacity (kA)	65
Tripping Unit	MA
Voltage (V)	690 AC
Trip Unit - Magnetic	MA

Description

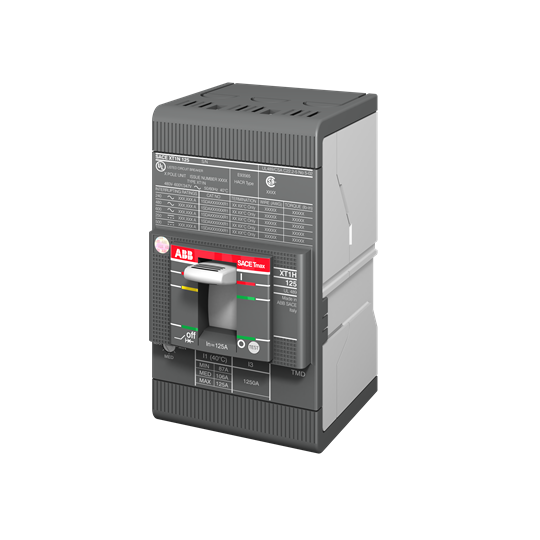

C.BREAKER TMAX XT1H 125 UL/CSA FIXED THREE-POLE WITH FRONT TERMINALS AND MAGNETIC RELEASE MCP Iu 100 A I3=300...1100 A
