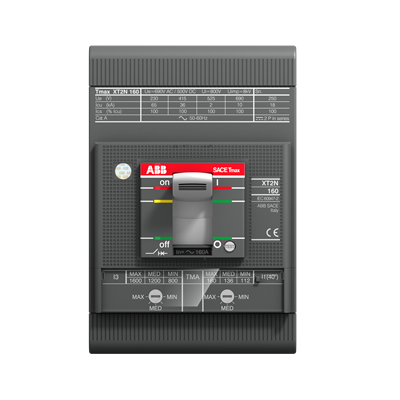

ABB XT2N3T160MC1 MCCB XT2N 3P FXD In=160A LSI MET. CLASS 1

Product Code: XT2N3T160MC1

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Brand ABB
Product Type MCCB
Current Rating (A) 160
I (1.5 to 10 x In) - I3 (A) 240-1600
L (0.4 to 1 x In) - I1 (A) 64-160
No. of Poles 3
Rated Current (A) 160
S (0.6 to 10 x In) - I2 (A) 96-1600
Size of Frame XT2
Trip Unit Ekip DIP LSI
MCCB Type Embedded Metering Class 1
Poles 3P
Tripping Unit Ekip DIP LSI
Trip Unit - Electronic Ekip DIP LSI

Description

The MCCB XT2N is a 160A frame circuit breaker with 3 poles. It has a breaking capacity of 36kA. The fixed current rating is 160A, and the adjustable current ranges are I1=64-160A, S-I2=96-1600A, and I-I3=240-1600A. It features a touch LSI trip unit with class 1 metering. The front terminals are provided by ABB.
