Version	Fixed
Brand	ABB
EAN	8015644017002
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	160
Design of Control Element	Toggle
L - Overload Current Setting I1 (A)	64 - 160
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Power Loss (W)	10.8
Rated Current (A)	160
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	160
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
S/I Current Setting I2/I3 (A)	160 - 1600
Dimensions (mm)	90W x 130H x 82.5D
Trip Unit	EKIP DIP LS/I
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT2 Frame
Poles	3P
Breaking Capacity (kA)	50
Tripping Unit	EKIP DIP LS/I
Voltage (V)	690 AC
Trip Unit - Electronic	EKIP DIP LS/I

Moulded Case Circuit Breakers

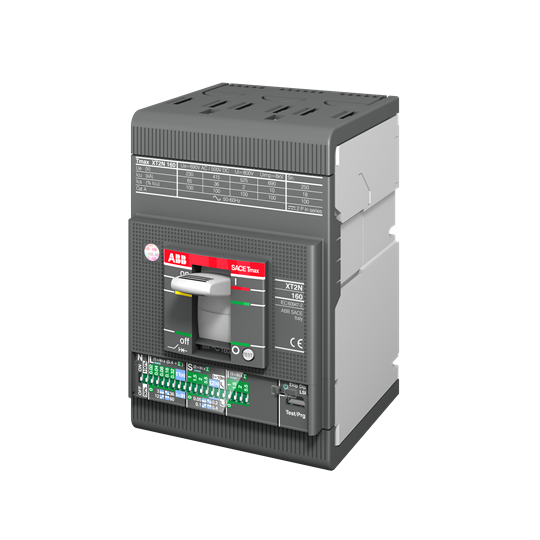

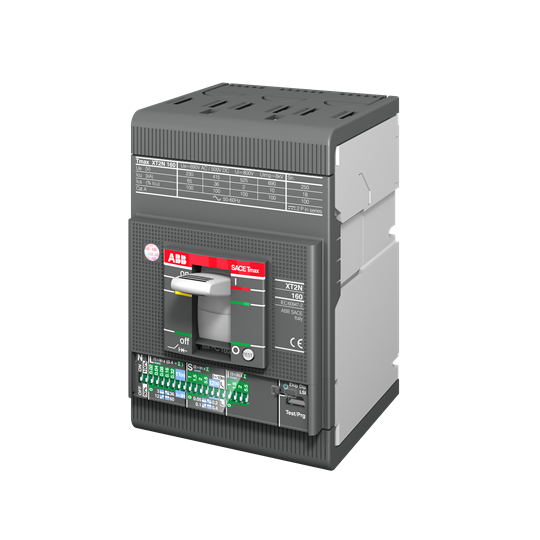

ABB XT2S 160 EKIP LS/I IN=160A 3P F F 1SDA067804R1
