Specifications

Version	Fixed
Brand	ABB
Product Type	MCCB
EAN	8015644024161
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	250
Design of Control Element	Toggle
G - Earth Fault Current Setting I4 (A)	50 - 250
I - Short-circuit Current Setting I3 (A)	250 - 2500
L - Overload Current Setting I1 (A)	100 - 250
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Overload Release Current Setting (A)	100
Power Loss (W)	16.4
Rated Current (A)	250
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	250
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	250
Rated Voltage (V)	690
S - Selective Short-circuit Current Setting I2 (A)	250 - 2500
Dimensions (mm)	140W x 160H x 82.5D
Trip Unit	EKIP DIP LSIG
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT4 Frame
Poles	4P
Breaking Capacity (kA)	50
Tripping Unit	EKIP DIP LSIG
Voltage (V)	690 AC
Trip Unit - Electronic	EKIP DIP LSIG

Description

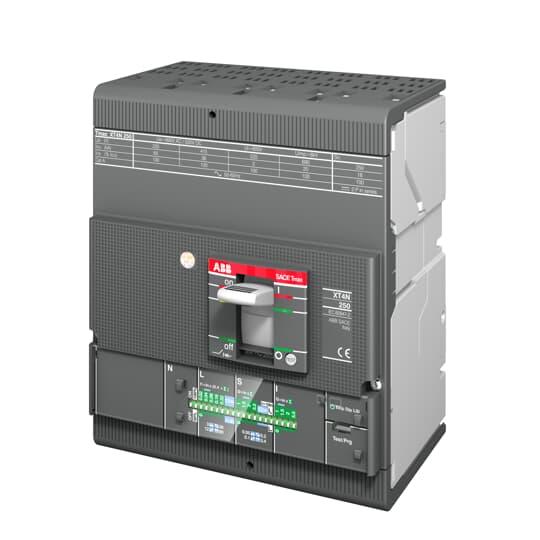

C.BREAKER TMAX XT4S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSIG R 250 A
