Specifications

Version	Fixed
Brand	ABB
Product Type	MCCB
EAN	8015644021986
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	32
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	320
L - Overload Current Setting I1 (A)	22.4 - 32
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Overload Release Current Setting (A)	12.8
Power Loss (W)	4.44
Rated Current (A)	32
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	320
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Dimensions (mm)	105W x 160H x 82.5D
Trip Unit	TMD
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT4 Frame
Poles	3P
Breaking Capacity (kA)	50
Tripping Unit	TMD
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMD

Description

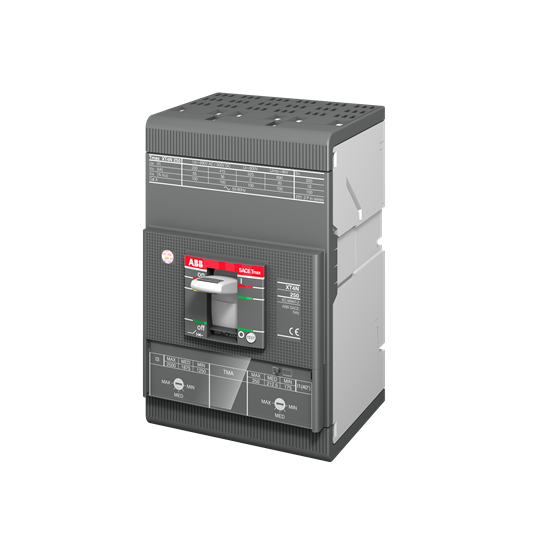

C.BREAKER TMAX XT4S 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 32-320 A
