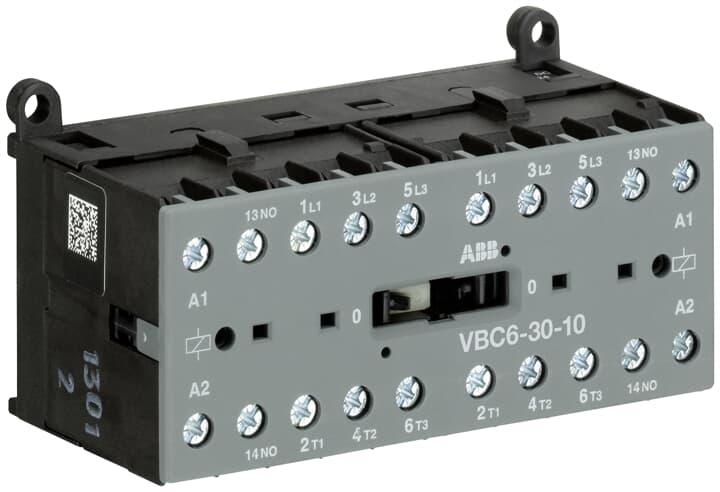

ABB VBC6301001 MINI REVERSING CONTACTOR 3P, 4KW 415VAC CONTROL 24VDC AUX 1NO

Product Code: VBC6301001

In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Mounting Type DIN Rail/Wall
Operational Temperature Range (°C) -20 to +55
Brand ABB
Product Type Mini Contactor
Auxiliary Contacts 1NO
No. of Poles 3P
Power Loss (W) 2.0/pole
Rated Control Circuit Voltage DC (V) 24
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 690
Rated Operational Current AC-1 240V (A) 20
Rated Operational Power AC-3 415V (kW) 4
Rated Operational Voltage AC (V) 690
Terminal Type Screw
Dimensions (mm) 57.5H x 46.5D x 96.5W
Degree of Protection IP20
Pollution Degree 3

Description

The VBC6-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals, and normal mechanical interlock. It is designed for applications where reliability is crucial and space is limited. These contactors are commonly used in residential, commercial, and industrial settings to control three-phase motor loads up to 4 kW (AC-3). Notable features include a noiseless and hum-free coil, switch position indication, and the option for rail or wall mounting.
