Suitable For	E4.2
Version	Withdrawable
Brand	ABB
EAN	8015644769765
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Current Rating (A)	3200
Current Type	AC
Design of Control Element	Push Button
Earth Fault Protection	Yes
Indication	Switched-off Indicator
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	4
Overload Release Current Setting (A)	1280
Power Loss (W)	743
Rated Current (A)	3200
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	4800
Rated Insulation Voltage AC (V)	1000
Rated Short-time Withstand Current - Icw (kA/1s)	66
Rated Short-time Withstand Current - Icw (kA/3s)	50
Rated Uninterrupted Current - Iu (A)	3200
Rated Voltage (V)	690
Rated Voltage AC (V)	690
Dimensions (mm)	551W x 425H x 383D
Trip Unit	EKIP Touch LSIG
Degree of Protection	IP30
Poles	4P
Trip Unit - Electronic	EKIP Touch LSIG
Icw (kA/1s) - Short-time Withstand Current Rating	66
Icw (kA/3s) - Short-time Withstand Current Rating	50
Iu - Uninterrupted Current Rating (A)	3200
Component Type	Withdrawable

Air Circuit Breakers

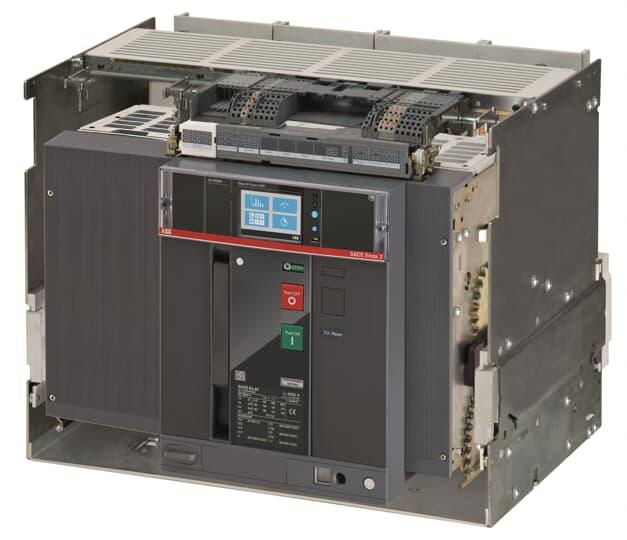

ABB E4.2N 3200 EKIP TOUCH LSIG 4P WMP 1SDA073126R1
