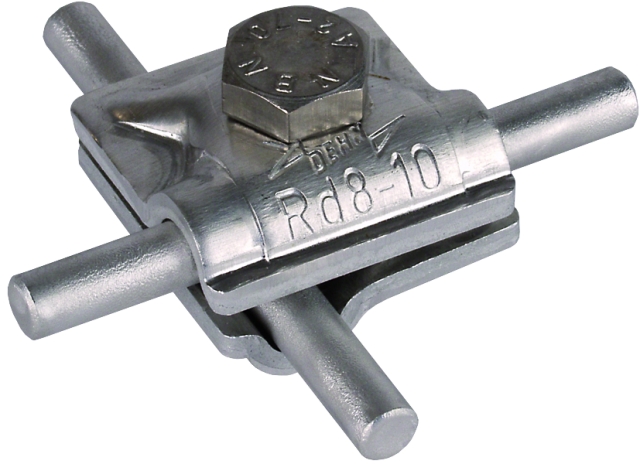

DEHN MV CLAMP AL F. RD 8-10mm WITH SCREW 390051

Product Code: 390051

  • Multipurpose connecting clamp For universal use as a cross clamp, T clamp, and parallel clamp for round conductors Two-piece with hexagon screw and thread in the base part
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Lightning current load-bearing capacity (10/350µs) 100 / 50
Lid Screw Type Hexagon screw
Material Aluminium
Screw Size M10 x 30
Clamping Range (mm) 8 - 10
Conductor Diameter (mm) 8
Brand DEHN
Product Type Clamps and Connectors
Connector Type T-/cross-/parallel connector
Surface Protection Untreated
Dimensions (mm) 4W x 4H x 4D
Thickness (mm) 3
Weight (kg) 0.06
Standards and Approvals EN 62561-1

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
